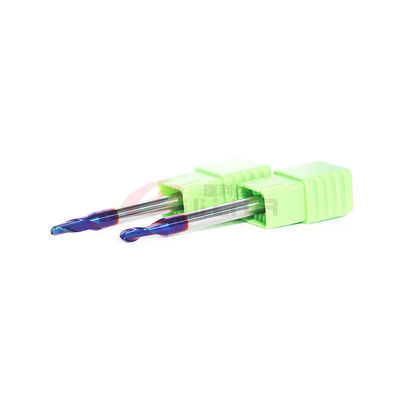

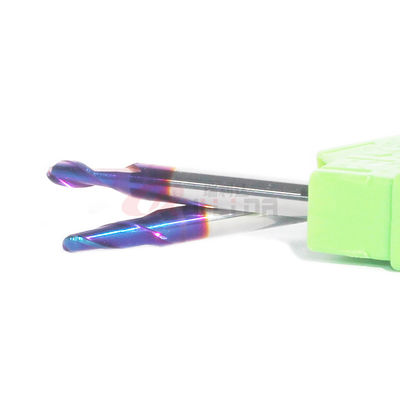

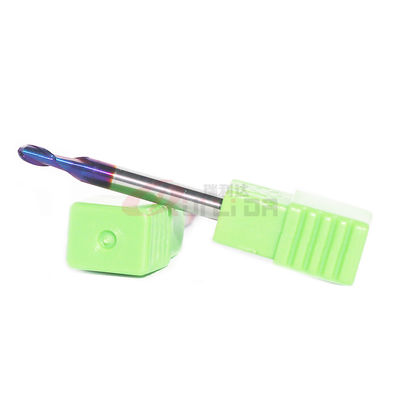

HRC65 Hardness Carbide Ball Nose End Mill 3mm 2 Flutes 30 Degree For Hard Steel
| Place of Origin | China |
|---|---|
| Brand Name | RLD Tools |
| Model Number | HRC65-R1.5 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | 1pcs endmill in a plastic pipe, ten pieces a rubber bundle, then in a carton. |
| Delivery Time | 5-7 work days |
| Payment Terms | T/T/PayPal/Credit Card |
| Supply Ability | 800000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HRC65 Ball Nose End Mill | Diameter | R1.5 |
|---|---|---|---|
| Flute Length | 6mm | Helix Angle | 30 |
| Flute NO. | 2 | Suitable For | Hardened Steel, Titanium, Etc. |
| Coating | Blue | Raw Material | GU092 |
| Grain Size | 0.2μm | Origin | JIANGSU, CHINA |
| High Light | HRC65 Carbide Ball Nose End Mill,3mm Carbide Ball Nose End Mill,2 Flutes Ball Nose End Mill |
||
Product Description
HRC65 High Hardness 3mm 2 Flutes 30 Degree Carbide Ball Nose End Mill for Hard Steel
RLD End Mill Catalog in English.pdf
End milling Cutter for Stainless steel, tool steel, heat treated steel, die steel.
- Durable and practical.
- Highest harness could reach HRC65 for general steel alloy steel mold steel.
- Two flutes design provides small chip loads and quicker removal.
- Round nose design, negative angle design, higher precision.
HRC65 ball nose end mill is suitable for cutting the heated hard steel under the hardness HRC65.
| Product name | HRC65 2 flutes 3mm R1.5 high hardness ball nose end mill |
| Specification | R1.5*6*50*4D*2F |
| Suitable for | High hardness mold steel, titanium, etc. |
| Machine type | CNC Milling Machine |
| Flutes | 2 |
| Coating | Blue Naco |
| Helix | 30° |
| Co | 9% |
| HRA | 93.5-94.3 |
| TRS Min(N/mm²) | 4100 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | ZY10EF | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized according to workpiece |
| RLD HRC65 2 Flutes Carbide High Hardness Ball Nose End Mill | ||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 1 | 50 | 2 | 4 | 2 |
| 1.5 | 50 | 3 | 4 | 2 |
| 2 | 50 | 4 | 4 | 2 |
| 2.5 | 50 | 5 | 4 | 2 |
| 3 | 50 | 6 | 3 | 2 |
| 3 | 50 | 7.5 | 4 | 2 |
| 3.5 | 50 | 9 | 4 | 2 |
| 4 | 50 | 10 | 4 | 2 |
| 4 | 75 | 14 | 4 | 2 |
| 4 | 100 | 18 | 4 | 2 |
| 5 | 50 | 13 | 5 | 2 |
| 5 | 50 | 13 | 6 | 2 |
| 6 | 50 | 15 | 6 | 2 |
| 6 | 75 | 21 | 6 | 2 |
| 6 | 100 | 27 | 6 | 2 |
| 8 | 60 | 20 | 8 | 2 |
| 8 | 75 | 30 | 8 | 2 |
| 8 | 100 | 35 | 8 | 2 |
| 10 | 75 | 20 | 10 | 2 |
| 10 | 100 | 20 | 10 | 2 |
| 12 | 75 | 24 | 12 | 2 |
| 12 | 100 | 24 | 12 | 2 |
| 14 | 100 | 28 | 14 | 2 |
| 16 | 100 | 32 | 16 | 2 |
| 18 | 100 | 36 | 18 | 2 |
| 20 | 100 | 40 | 20 | 2 |
| 6 | 150 | 12 | 6 | 2 |
| 8 | 150 | 16 | 8 | 2 |
| 10 | 150 | 20 | 10 | 2 |
| 12 | 150 | 24 | 12 | 2 |
| 14 | 150 | 28 | 14 | 2 |
| 16 | 150 | 32 | 16 | 2 |
| 18 | 150 | 36 | 18 | 2 |
| 20 | 150 | 40 | 20 | 2 |
Our package
Step1: The milling cutter has been finished producing and sent to the warehouse
Step2: One cutter put in a plastic pipe, 10pieces per group bind with a rubber band
Step3: Use the air bubble paper to encase the plastic pipe
Step4: Put the goods encased with air bubble paper in small packing cartons
Step5: Put another air bubble paper on the goods and packaging
Step6: Sent by logistics company or express according to customer's need
FAQ
1. Are you a manufacturer or trading company?
Our company is especially producing carbide end mills, drill bits, and reamers.
2. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machine.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
6. Can you produce special carbide tools?
Yes, we can produce special carbide tools according to your drawings or samples.
7. Do you have any discounts?
Yes, we have a discount based on the quantity.
Welcome to send inquiries to us.
