High Hardness Carbide 2 Flutes Ball Nose End Mill 2.5mm 30 Degree For Mold Steel

Place of Origin China
Brand Name RLD Tools
Model Number HRC65-R1.25
Minimum Order Quantity 1
Price Negotiable
Packaging Details 1pcs endmill in a plastic pipe, ten pieces a rubber bundle, then in a carton.
Delivery Time 5-7 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 800000pcs/month
Product Details
Product Name HRC65 Ball Nose End Mill Diameter R1.25
Flute Length 5mm Helix Angle 30
Flute NO. 2 Suitable For Hardened Steel, Stainless Steel, Titanium, Etc.
Raw Material GU092 Grain Size 0.2μm
Origin JIANGSU, CHINA Flute Type Spiral
High Light

Ball Nose End Mill 2.5mm

,

30 Degree Ball Nose End Mill

Leave a Message
Product Description

HRC65 High Hardness Carbide 2 Flutes Ball Nose End Mill 2.5mm 30 Degree For Mold Steel

RLD End Mill Catalog in English.pdf



Good wear resistance by high-quality blue nano PVD coating
High precision edge tolerance.
Reinforced edge design for preventing edge chipping
Outstanding performance at high-speed machining by ultra-fine micro-grain carbide (0.2μm)



Product name HRC65 2 flutes 2.5mm R1.25  ball nose end mill for mold steel
Specification  R1.25*5*50*4D*2F
Suitable for  High hardness mold steel, titanium,  etc.
Machine type CNC Milling Machine
Flutes 2
Coating  Blue coating
Helix 30°
Co 9%
HRA 93.5-94.3
TRS Min(N/mm²) 4100
Tolerance Within 0/-0.02mm
Processing machine ANCA/WALTER





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 ZY10EF 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized





       RLD HRC65 2 Flutes Carbide High Hardness Ball Nose End Mill
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 2 4 2
1.5 50 3 4 2
2 50 4 4 2
2.5 50 5 4 2
3 50 6 3 2
3 50 7.5 4 2
3.5 50 9 4 2
4 50 10 4 2
4 75 14 4 2
4 100 18 4 2
5 50 13 5 2
5 50 13 6 2
6 50 15 6 2
6 75 21 6 2
6 100 27 6 2
8 60 20 8 2
8 75 30 8 2
8 100 35 8 2
10 75 20 10 2
10 100 20 10 2
12 75 24 12 2
12 100 24 12 2
14 100 28 14 2
16 100 32 16 2
18 100 36 18 2
20 100 40 20 2
6 150 12 6 2
8 150 16 8 2
10 150 20 10 2
12 150 24 12 2
14 150 28 14 2
16 150 32 16 2
18 150 36 18 2
20 150 40 20 2

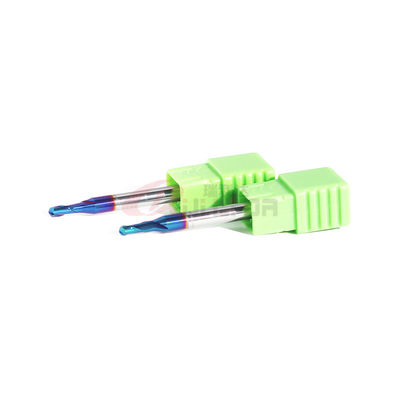

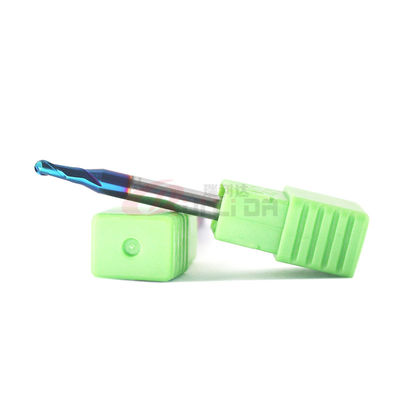

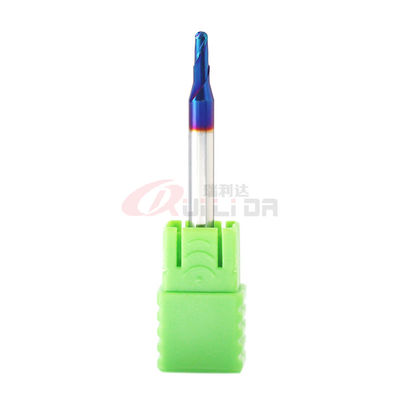

High Hardness Carbide 2 Flutes Ball Nose End Mill 2.5mm 30 Degree For Mold Steel 0High Hardness Carbide 2 Flutes Ball Nose End Mill 2.5mm 30 Degree For Mold Steel 1





Our package

Step1: The milling cutter has been finished producing and sent to the warehouse

Step2: One cutter put in a plastic pipe, 10pieces per group bind with a rubber band

Step3: Use the air bubble paper to encase the plastic pipe

Step4: Put the goods encased with air bubble paper in small packing cartons

Step5: Put another air bubble paper on the goods and packaging

Step6: Sent by logistics company or express according to customer's need



                                          FAQ

1. Are you a manufacturer or trading company?

Our company is especially producing carbide end mills, drill bits, and reamers.



2. Which CNC grinding machine do you use?

All of our carbide tools are produced by ANCA & WALTER machine.



3. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.



4. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.



5. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.



6. Can you produce special carbide tools?

Yes, we can produce special carbide tools according to your drawings or samples.



7. Do you have any discounts?
Yes, we have a discount based on the quantity.
