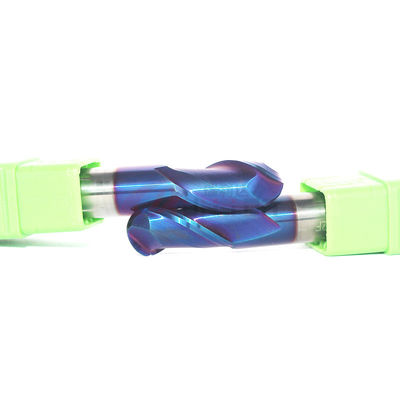

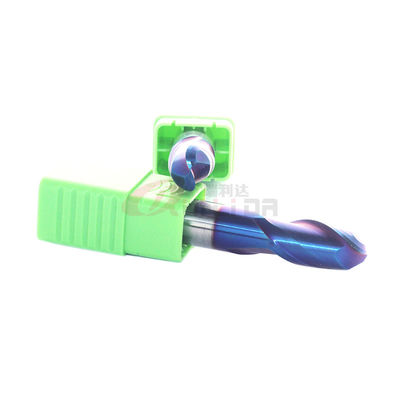

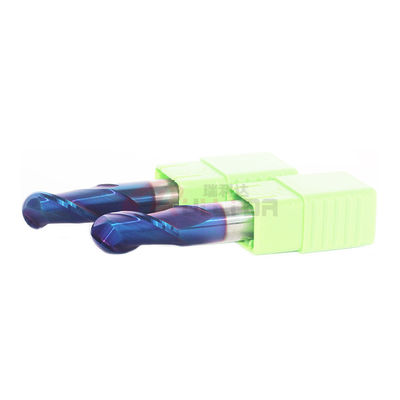

Long Carbide Ball Nose End Mill HRC65 12mm 1/2 Inch 2 Flutes For Die Steel

  • Long Carbide Ball Nose End Mill HRC65 12mm 1/2 Inch 2 Flutes For Die Steel
  • Long Carbide Ball Nose End Mill HRC65 12mm 1/2 Inch 2 Flutes For Die Steel
  • Long Carbide Ball Nose End Mill HRC65 12mm 1/2 Inch 2 Flutes For Die Steel
  • Long Carbide Ball Nose End Mill HRC65 12mm 1/2 Inch 2 Flutes For Die Steel
Place of Origin China
Brand Name RLD Tools
Model Number HRC65-R6
Minimum Order Quantity 1
Price Negotiable
Packaging Details 1pcs endmill in a plastic pipe, ten pieces a rubber bundle, then in a carton.
Delivery Time 5-7 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 800000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name HRC65 Ball Nose End Mill Brand RLD
Diameter R6 Flute Length 12mm
Shank Diameter 12mm Overall Length 75mm
Suitable For Hardened Steel, Stainless Steel, Titanium, Etc. Coating Blue Nano Coating
Grinding Machines & ANCA Grinding Machines Carbide Rod GESAC Carbide
High Light

12mm Ball Nose End Mill

,

Die Steel Ball Nose End Mill

,

Carbide Ball Nose End Mill HRC65
Leave a Message
Product Description

HRC65 12mm Just short of 1/2 Inch 2 Flutes Long Carbide Ball Nose End Mill for Die Steel



RLD End Mill Catalog in English.pdf



Good wear resistance by high-quality blue nano PVD coating
High precision edge tolerance
Reinforced edge design for preventing edge chipping
Outstanding performance at high-speed machining by ultra-fine micro-grain carbide (0.2μm)



This is a high hardness ball nose end mill,

Especially good for the hardened mold steel above HRC58.



Product name 12mm 2 Flutes Carbide Ball Nose End Mill
Specification  R6*12*75*12D*2F/customized
Suitable for  High hardness mold steel, titanium,  etc.
Machine type CNC Milling Machine
Flutes 2
Coating  Blue coating
Helix 30°
Co 9%
HRA 93.5-94.3
TRS Min(N/mm²) 4100
Tolerance Within 0/-0.02mm
Processing machine ANCA/





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 ZY10EF 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45
HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized





       RLD HRC65 2 Flutes Carbide High Hardness Ball Nose End Mill
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 2 4 2
1.5 50 3 4 2
2 50 4 4 2
2.5 50 5 4 2
3 50 6 3 2
3 50 7.5 4 2
3.5 50 9 4 2
4 50 10 4 2
4 75 14 4 2
4 100 18 4 2
5 50 13 5 2
5 50 13 6 2
6 50 15 6 2
6 75 21 6 2
6 100 27 6 2
8 60 20 8 2
8 75 30 8 2
8 100 35 8 2
10 75 20 10 2
10 100 20 10 2
12 75 24 12 2
12 100 24 12 2
14 100 28 14 2
16 100 32 16 2
18 100 36 18 2
20 100 40 20 2
6 150 12 6 2
8 150 16 8 2
10 150 20 10 2
12 150 24 12 2
14 150 28 14 2
16 150 32 16 2
18 150 36 18 2
20 150 40 20 2



Long Carbide Ball Nose End Mill HRC65 12mm 1/2 Inch 2 Flutes For Die Steel 0Long Carbide Ball Nose End Mill HRC65 12mm 1/2 Inch 2 Flutes For Die Steel 1

Our package



Step1: The end mill has been finished producing and sent to the warehouse



Step2: 1pcs put in a plastic film, 10pcs per group with a rubber band



Step3: Use the air bubble film to encase the plastic pipe



Step4: Put the goods encased with air bubble film in small packing cartons



Step5: Put another air bubble film on the goods and packaging



Step6: Sent by logistics company or express according to customer's need





                                          FAQ

1. Are you a manufacturer or trading company?

We are a manufacturer of carbide end mills, drill bits, and reamers.



2. What kind of grinding wheels do you use?
We are using WINTER brand grinding wheels.
They are imported from Germany.
High-quality grinding wheel is also important for the quality of carbide tools.



3. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.

We also can send the goods to your shipping agent in China.





4. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.



5. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.

CNY is also acceptable.



6. Can you produce special carbide tools?

Yes, we can produce special carbide tools according to your drawings or samples.



7. Do you have any discounts?
Yes, we have a discount based on the quantity.



8. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make customized stickers.
