2 Flutes Ball Nose End Mill Hrc65 1/4" 6mm For Heated Die Steel
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | HRC65 2 Flutes Ball Nose End Mill | Helix Angle | 30 |
---|---|---|---|
Coating | Blue Nano Coating | Suitable For | Titanium, Die Steel, Etc |
Carbide Rod | GESAC ROD | Spiral | Right Spiral |
High Light | Hrc65 Ball Nose End Mill,1/4in 6mm Ball Nose End Mill,2 Flutes 6mm Ball Nose Cutter |

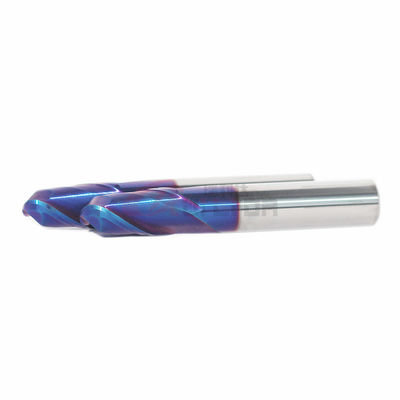

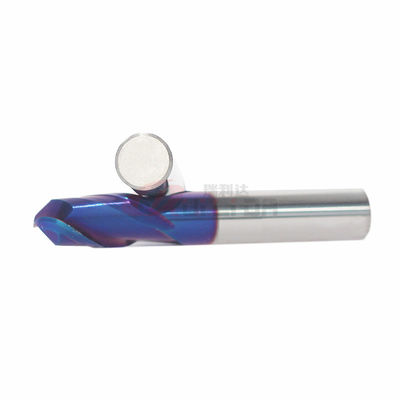

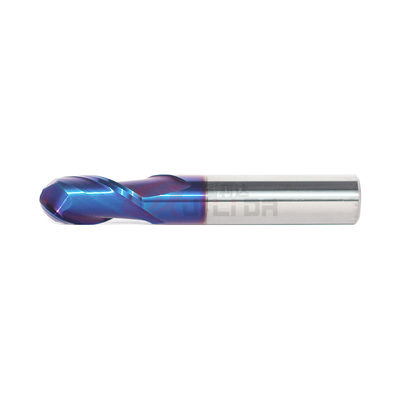

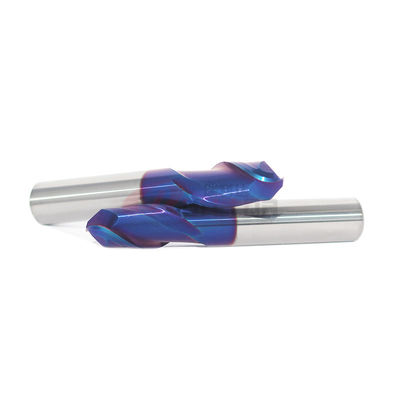

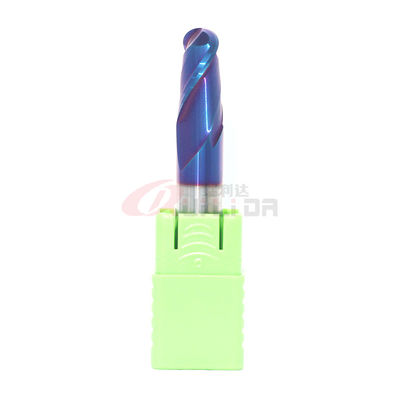

1/4" 6mm 2 Flutes Ball Nose End Mill Hrc65 For Heated Die Steel
Product name | RLD HRC65 2 flute ball nose end mill |
Specification | Can be customized |
Suitable for | Stainless Steel, Inconel, Super Alloy Steel, Die Steel, etc |
Milling type | CNC Milling Machine |
Flutes | 2 |
Coating | Blue nano-coating |
Helix | 30 |
Co | 9% |
HRA | 93.5 |
TRS Min(N/mm²) | 4100 |
Flute Tolerance | Within 0/-0.015mm |
Spiral flute | Yes |
Carbide Raw Material Introduction
End mill grade | Carbide rod | Grain size | HRA | Application |
HRC50 | ZY10EF | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
DLC | Black | 1-3 | 1800 | 0.1 | 350 |
Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
The coating also can be customized |
RLD HRC65 2F Carbide Ball Nose End Mill Standard Size | ||||
Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
1 | 50 | 2 | 4 | 2 |
1.5 | 50 | 3 | 4 | 2 |
2 | 50 | 4 | 4 | 2 |
2.5 | 50 | 5 | 4 | 2 |
3 | 50 | 6 | 3 | 2 |
3 | 50 | 7.5 | 4 | 2 |
3.5 | 50 | 9 | 4 | 2 |
4 | 50 | 10 | 4 | 2 |
4 | 75 | 14 | 4 | 2 |
4 | 100 | 18 | 4 | 2 |
5 | 50 | 13 | 5 | 2 |
5 | 50 | 13 | 6 | 2 |
6 | 50 | 15 | 6 | 2 |
6 | 75 | 21 | 6 | 2 |
6 | 100 | 27 | 6 | 2 |
8 | 60 | 20 | 8 | 2 |
8 | 75 | 30 | 8 | 2 |
8 | 100 | 35 | 8 | 2 |
10 | 75 | 20 | 10 | 2 |
10 | 100 | 20 | 10 | 2 |
12 | 75 | 24 | 12 | 2 |
12 | 100 | 24 | 12 | 2 |
14 | 100 | 28 | 14 | 2 |
16 | 100 | 32 | 16 | 2 |
18 | 100 | 36 | 18 | 2 |
20 | 100 | 40 | 20 | 2 |
6 | 150 | 12 | 6 | 2 |
8 | 150 | 16 | 8 | 2 |
10 | 150 | 20 | 10 | 2 |
12 | 150 | 24 | 12 | 2 |
14 | 150 | 28 | 14 | 2 |
16 | 150 | 32 | 16 | 2 |
18 | 150 | 36 | 18 | 2 |
20 | 150 | 40 | 20 | 2 |
Our package
Step1: The milling cutter has been finished producing and sent to the warehouse
Step2: One cutter put in a plastic pipe, 10pieces per group bind with a rubber band
Step3: Use the air bubble paper to encase the plastic pipe
Step4: Put the goods encased with air bubble paper in small packing cartons
Step5: Put another air bubble paper on the goods and packaging
Step6: Sent by logistics company or express according to customer's need
FAQ
1. Do you prepare HRC65 Carbide Ball Nose End Mill in stock?
Yes, we usually prepare standard metric sizes in stock.
For our standard size carbide end mills, we don't have MOQ.
2. Which CNC grinding machines do you use?
All of our carbide end mills are produced by ANCA & machines.
They are imported from Australia and Germany.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, EMS, ARAMEX, ETC.
We also can send the parcels to your forwarder in China.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T/Credit Card/PayPal, etc.
6. Can you produce special carbide tools?
Yes, we can produce customized carbide tools according to your drawings or samples.
7. What kind of grinding wheels do you use?
We are using WINTER brand grinding wheels.
They are imported from Germany.
A High-quality grinding wheel is also important for the quality of carbide tools.
