Aluminium 6 Flute End Mill DLC Coating 25mm 1" For CNC Milling Machine

Place of Origin China
Brand Name RLD Tools
Model Number HRC50-65
Minimum Order Quantity 1
Price Negotiable
Packaging Details One piece end mill in a plastic tube, ten pieces a bundle, then in carton.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 1000pcs/month
Product Details
Name 6 Flute End Mill With DLC Coating Aluminium Endmill Type 6 Flute End Mill
Coating Customzied Material Carbide
Diameter Customzied Overall Length Customized
Suitable For According To Your Requirement Brand RLD/OEM
High Light

6 Flute End Mill 1in

,

25mm Alu 6 Flute End Mill 1in

,

CNC Milling Machine Custom End Mill

Leave a Message
Product Description

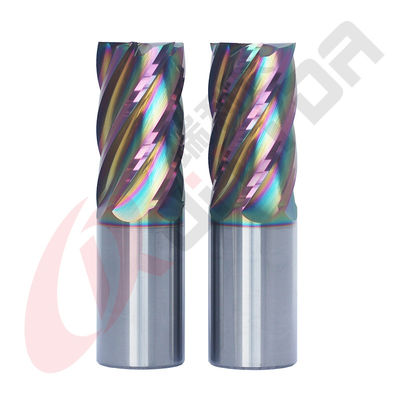

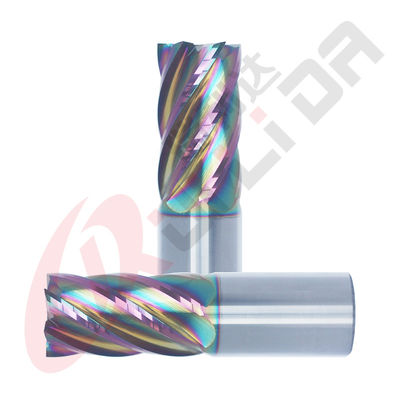

25mm 1" 6 Flute End Mill with DLC coating Aluminium Endmill CNC Milling Cutter

This 6 flute end mill ffers outstanding performance and high temperature resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, and cast iron.
Engineered for excellent performance in light profiling, High Efficiency Milling, and finishing applications.
6 flute increased feed rates.
h6 shank tolerance for high precision tool holders
DLC coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life



Product name 6 Flute End Mill with DLC coating Aluminium Endmill
Feature Durable tool life
Suitable for   Steel, stainless steel, iron, cast iron
Machine type CNC milling machine
Flutes Customized
Coating  Customized
Helix Customized




                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62



                                                            Coating   Introduction


Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized according to your requirement.


Aluminium 6 Flute End Mill DLC Coating 25mm 1" For CNC Milling Machine 0Aluminium 6 Flute End Mill DLC Coating 25mm 1" For CNC Milling Machine 1

                                                     FAQ
1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools which was established in 2011.


2. Which CNC grinding machine do you use?

All of our carbide tools are produced by 5-axis machines.


3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
For large amount, we can send by air or by sea.

We also can send products to your forwarder in China.


4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.

5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.


 6. How do you ensure the stability of quality?
Our company seldom change rod suppliers.
And we only sell the tools produced by ourselves.
So for the same grade, our quality is always the same.


7. Can you produce special carbide tools?

Yes, we can produce special carbide tools according to your drawings or samples.
