25mm 1" 6 Flutes Custom End Mill DLC Coating For CNC Milling Tools

Place of Origin China
Brand Name RLD Tools
Model Number HRC50-65
Minimum Order Quantity 1
Price Negotiable
Packaging Details One piece end mill in a plastic tube, ten pieces a bundle, then in carton.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name 25mm 1" 6 Flute Custom End Mill With DLC Coating Aluminium Endmill CNC Milling Tools Type 6 Flutes End Mill For Alu
Coating DLC/Customized Material Tungsten Solid Carbide
Diameter 0.5-35mm Overall Length 38-300mm
Suitable For According To Your Requirement Precision H6
Origin Jiangsu, China Helix Angle 30 Or Customized
High Light

6 Flutes Custom End Mill


25mm DLC Coating Custom End Mill


CNC Milling Tools Aluminium End Mill

Leave a Message
Product Description

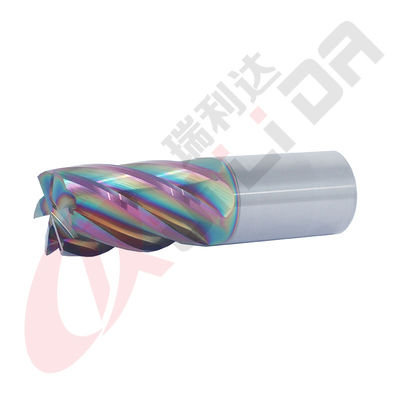

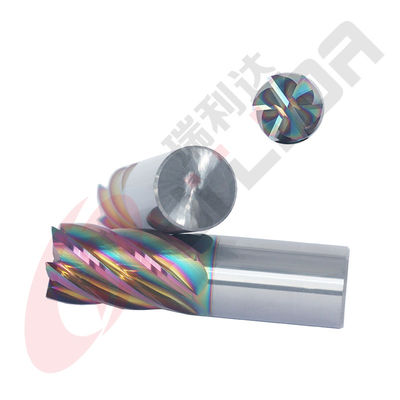

25mm 1" 6 Flutes Custom End Mill DLC Coating for Aluminium Endmill CNC Milling Tools


DLC: The cutting tools that are coated with multilayer nano rainbow film have some advantages as follow: Abrasion resistance, low-coefficient of friction, Anti-adhesion. These benefits substantially enhance the tool life.


Product name 6 Flute Custom End Mill with DLC Coating Aluminium
Feature Durable tool life
Suitable for   Steel, stainless steel, iron, cast iron
Machine type CNC milling machine
Flutes 2/3/4/6
Coating  Customized
Helix Customized

                                             Carbide Raw Material Introduction

End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62

                                                            Coating   Introduction

Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized according to your requirement.

25mm 1" 6 Flutes Custom End Mill DLC Coating For CNC Milling Tools 025mm 1" 6 Flutes Custom End Mill DLC Coating For CNC Milling Tools 1

 Our package

Step1: The end mill has been finished producing and sent to the warehouse

Step2: 1pcs put in a plastic film, 10pcs per group with a rubber band

Step3: Use the air bubble film to encase the plastic pipe

Step4: Put the goods encased with air bubble film in small packing cartons

Step5: Put another air bubble film on the goods and packaging

Step6: Sent by logistics company or express according to customer's need


1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools which was established in 2011.

2. Which CNC grinding machine do you use?

All of our carbide tools are produced by 5-axis machines.

3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
For large amount, we can send by air or by sea.

We also can send products to your shipping agent in China.

4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.

 6. 10. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make customized stickers.
