DLC Coating 6 Flute End Mill 25mm 1" for Aluminium CNC Milling Tools

Place of Origin China
Brand Name RLD Tools
Model Number HRC50-65
Minimum Order Quantity 1
Price Negotiable
Packaging Details One piece end mill in a plastic tube, ten pieces a bundle, then in carton.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 1000pcs/month
Product Details
Name 25mm 1" 6 Flute Custom End Mill With DLC Coating Aluminium Endmill CNC Milling Tools Type Custom 6 Flutes End Mill
Coating Can Be Customzied Material Carbide
Diameter 0.5-35mm Overall Length 38-300mm
Suitable For According To Your Requirement Precision H6
Origin Jiangsu, China Helix Can Be Customized
High Light

DLC Coating 6 Flute End Mill

,

Aluminium 6 Flute End Mill 25mm

,

H6 Custom End Mill

Leave a Message
Product Description

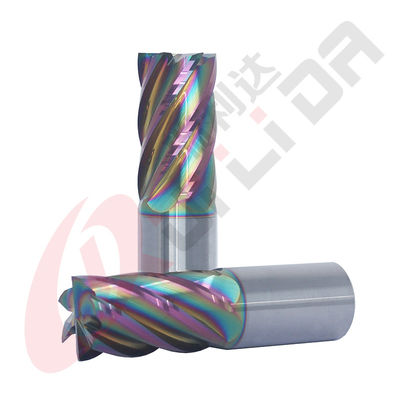

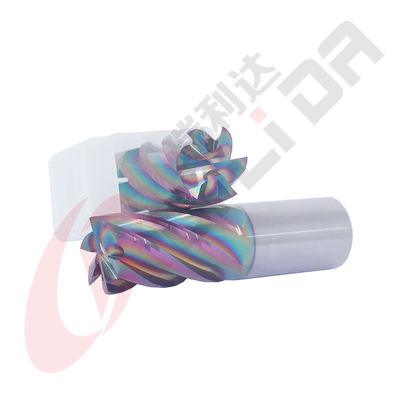

25mm 1" 6 Flute Custom End Mill with DLC Coating Aluminium Endmill CNC Milling Tools



DLC: The cutting tools that are coated with multilayer nano rainbow film have some advantages as follow: Abrasion resistance, low-coefficient of friction, Anti-adhesion. These benefits substantially enhance the tool life.



Product name 6 Flute Custom End Mill with DLC Coating Aluminium
Feature Durable tool life
Suitable for   Steel, stainless steel, iron, cast iron
Machine type CNC milling machine
Flutes Customized
Coating  Customized
Helix Customized




                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62



                                                            Coating   Introduction


Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized according to your requirement.


DLC Coating 6 Flute End Mill 25mm 1" for Aluminium CNC Milling Tools 0DLC Coating 6 Flute End Mill 25mm 1" for Aluminium CNC Milling Tools 1


 Our package


Step1: The milling cutter has been finished producing and sent to the warehouse


Step2: One cutter put in a plastic pipe, 10pieces per group bind with a rubber band


Step3: Use the air bubble paper to encase the plastic pipe


Step4: Put the goods encased with air bubble paper in small packing cartons


Step5: Put another air bubble paper on the goods and packaging


Step6: Sent by logistics company or express according to customer's need


                                                     FAQ
1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools which was established in 2011.


2. Which CNC grinding machine do you use?

All of our carbide tools are produced by 5-axis machines.


3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
For large amount, we can send by air or by sea.

We also can send products to your forwarder in China.


4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.

5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.


 6. How do you ensure the stability of quality?
Our company seldom change rod suppliers.
And we only sell the tools produced by ourselves.
So for the same grade, our quality is always the same.


7. Can you produce special carbide tools?

Yes, we can produce special carbide tools according to your drawings or samples.
