4 Flutes Corner Radius Cutter Solid Carbide Corner Rounding End Mill HRC60

Place of Origin China
Brand Name RLD Tools
Model Number HRC60
Minimum Order Quantity 1
Price 2-80USD/negotiable
Packaging Details One piece end mill in a plastic tube, ten pieces a bundle, then in carton.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 30000pcs/month
Product Details
Product HRC60 Corner Radius Cutter Number Of Flute 4/customized
Radius R0.2, R0.5, R1, R2 Material GU25UF
Coating TiAlN Diameter 1-30mm
Overall Length 38~200mm / Customized Suitable For Stainless Steel, Titanium, Hardened Steel
High Light

Solid Carbide Corner Rounding End Mill

,

Corner Rounding End Mill HRC60

,

4 Flutes Corner Radius Cutter

Leave a Message
Product Description

Corner Radius Cutter 4 Flutes Solid Carbide Corner Rounding End Mill HRC60



RLD HRC60 is made of GU25UF carbide rod with 0.4μm.



It's designed with variable helix angle and unequal flute spacing.



This corner radius cutter is with wide application, it can be used for milling hardened mold & die steels. alloy steel,

stainless steel, titanium, inconel, etc.



 All of our end mills are produced by the high precision 5 axis CNC grinding machines which are imported from Germany.

So the quality and precision of our end mills could be ensured.





Product name RLD HRC60 Corner Radius Cutter
Feature Multipurpose series
Suitable for  Stainless steel, titanium, hardened mold steel, etc.
Machine type CNC milling machine
Flutes 4
Coating   TiAlN/Customized
Helix angle 35 degree
Co 12%
HRA 92.8
TRS Min(N/mm²) 4200
Tolerance Within 0/-0.02mm
Processing machine ANCA/





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized according to your requirement.





RLD Corner Radius End Mill Standard Size
HRC50/55/60/65
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
2 (R0.2, 0.5) 50 5 4 4
3 (R0.2, 0.5) 50 8 4 4
4 (R0.2, 0.5) 50 10 4 4
4 (R0.2, 0.5) 75 12 4 4
4 (R0.2, 0.5) 100 16 4 4
5 (R0.5,1) 50 13 6 4
6 (R0.5,1) 50 15 6 4
6 (R0.5,1) 75 18 6 4
6 (R0.5,1) 100 24 6 4
8 (R0.5,1) 60 20 8 4
8 (R0.5,1) 75 24 8 4
8(R0.5,1) 100 32 8 4
10 (R0.5,1) 75 25 10 4
10 (R0.5,1) 100 30 10 4
12 (R0.5,1) 75 30 12 4
12 (R0.5,1) 100 36 12 4

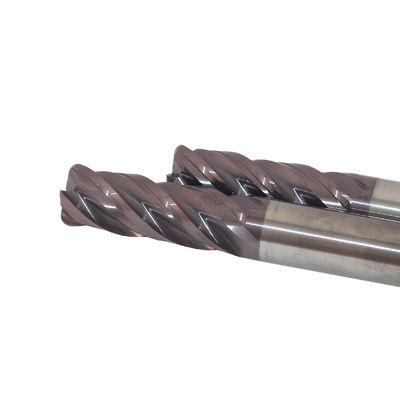

4 Flutes Corner Radius Cutter Solid Carbide Corner Rounding End Mill HRC60 0

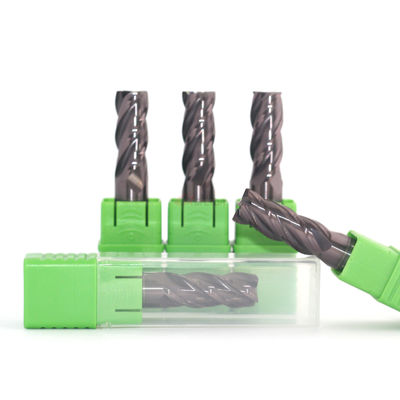

4 Flutes Corner Radius Cutter Solid Carbide Corner Rounding End Mill HRC60 1

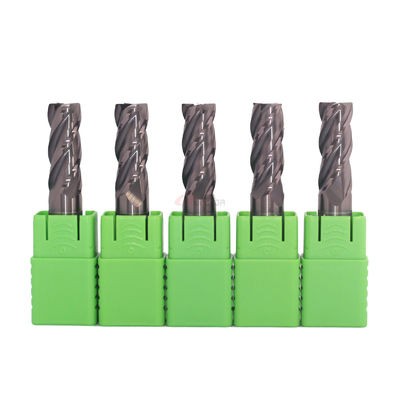

4 Flutes Corner Radius Cutter Solid Carbide Corner Rounding End Mill HRC60 2

4 Flutes Corner Radius Cutter Solid Carbide Corner Rounding End Mill HRC60 3

4 Flutes Corner Radius Cutter Solid Carbide Corner Rounding End Mill HRC60 4



   Corner radius cutter is a kind of bull end mill. It is with single end. It’s mainly used for making a corner radius at the bottom.

The cutting edge of corner radius cutter is stronger than square end mills. So it is with great productivity. It can be used in mold profiling applications with greater productivity than ball end mills. Our company’s solid carbide bull end mills are available in many diameters and over- lengths with different series for different applications.
