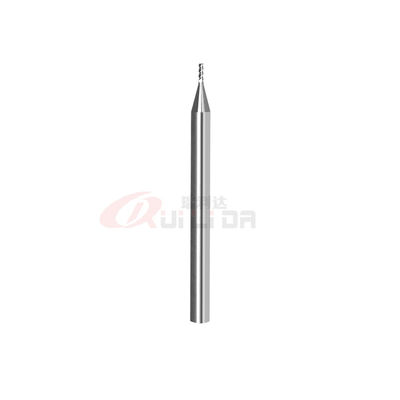

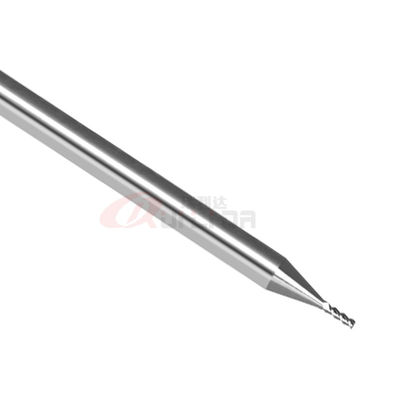

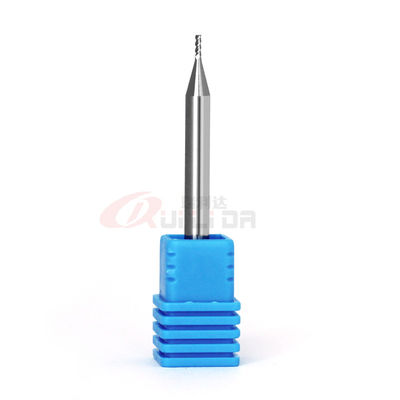

1/4 X 4 Oal 1/2" 3 Flute Carbide End Mill For Aluminum 1mm Polished
| Place of Origin | China |
|---|---|
| Brand Name | RLD Tools |
| Model Number | HRC50-1mm |
| Minimum Order Quantity | 1 |
| Price | 2.0USD/negotiable |

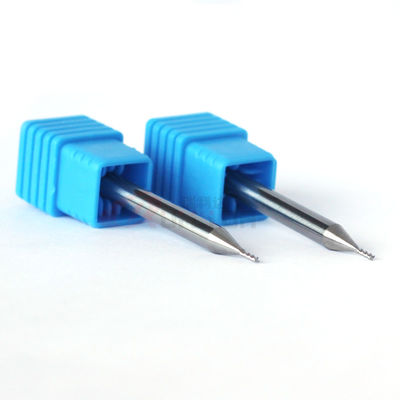

| Packaging Details | One piece end mill in a plastic tube, ten pieces a bundle, then in carton. |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T/PayPal/Credit Card |
| Supply Ability | 100000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 3 Flutes 1mm Square End Mill For Aluminium | Coating | Uncoated |
|---|---|---|---|
| Flute Dia | 1mm | Flute Length | 3mm |
| Overall Length | 50mm | Shank Dia | 4mm |
| Suitable For | Aluminium, Brass, Acrylic, Wood, Etc | ||
| High Light | 1/4 x 4 oal 3 flute carbide end mill,1mm carbide end mill HRC50 RLD,carbide end mill aluminum |
||
Product Description
| Product name | RLD HRC50 3 flutes aluminum end mill |
| Feature | Economic series |
| Suitable for | aluminum, brass, acrylic, etc |
| Machine type | CNC milling machine |
| Flutes | 3 |
| Coating | UIncoated/Customized |
| Helix angle | 45 degree |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 4000 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized according to your requirement. |
| RLD Square End Mill for Aluminium Standard Size HRC50/55/60 |
||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 1 | 50 | 3 | 4 | 2/3 |
| 2 | 50 | 6 | 4 | 2/3 |
| 3 | 50 | 9 | 4 | 2/3 |
| 4 | 50 | 12 | 4 | 2/3 |
| 4 | 75 | 16 | 4 | 2/3 |
| 4 | 100 | 20 | 4 | 2/3 |
| 6 | 50 | 18 | 6 | 2/3 |
| 6 | 75 | 24 | 6 | 2/3 |
| 6 | 100 | 30 | 6 | 2/3 |
| 8 | 60 | 24 | 8 | 2/3 |
| 8 | 75 | 32 | 8 | 2/3 |
| 8 | 100 | 40 | 8 | 2/3 |
| 10 | 75 | 30 | 10 | 2/3 |
| 10 | 100 | 40 | 10 | 2/3 |
| 12 | 75 | 36 | 12 | 2/3 |
| 14 | 100 | 45 | 14 | 2/3 |
| 16 | 100 | 45 | 16 | 2/3 |
| 18 | 100 | 45 | 18 | 2/3 |
| 20 | 100 | 45 | 20 | 2/3 |
