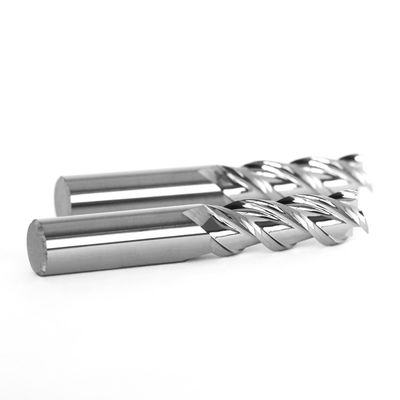

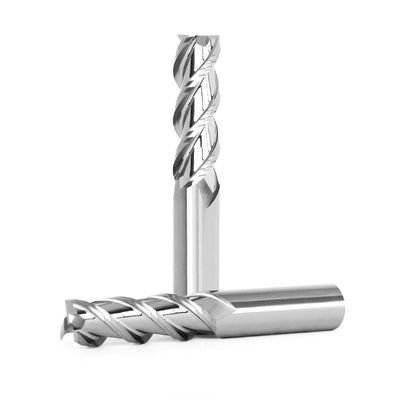

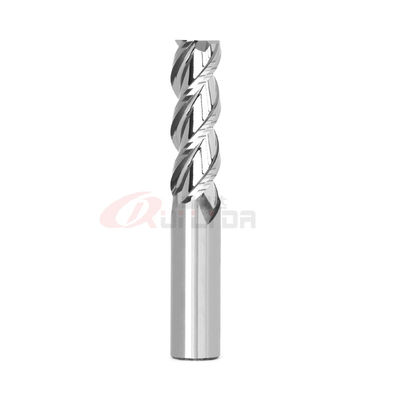

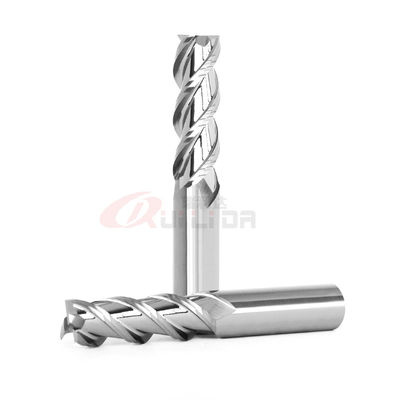

3 Mm 12mm 6mm Tungsten Carbide End Mill Aluminum Milling Cutter CNC HRC50 3 Flute

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | 3 Flute 12mm Square End Mill For Aluminium | Flute Dia | 12mm |
---|---|---|---|
Flute Length | 36mm | Overall Length | 75mm |
Shank Dia | 12mm | Flute Number | 3 |
Origin | Jiangsu, China | Brand | RLD |
High Light | tungsten carbide end mill 3 mm,6mm Tungsten carbide end mill aluminum,aluminum cnc cutter |
HRC50 CNC 3 Flute Solid Tungsten Carbide Endmills 12mm Milling Cutter for Alu
Product name | RLD HRC50 3 flutes 12mm aluminum endmill |
Size | 12×36×75×12D×3F |
Suitable for | aluminum, brass, acrylic, wood, etc |
Feature | Polished |
Flute Number | 3 |
Coating | Uncoated |
Helix angle | 45° |
Co | 10% |
HRA | 91.8 |
TRS Min(N/mm²) | 4000 |
Tolerance | Within 0/-0.02mm |
Processing machine | ANCA/ |
Carbide Raw Material Introduction
End mill grade | Carbide rod | Grain size | HRA | Application |
HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
DLC | Black | 1-3 | 1800 | 0.1 | 350 |
Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
Coating also can be customized |
RLD Square End Mill for Aluminium Standard Size HRC50 |
||||
Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
1 | 50 | 3 | 4 | 2/3 |
2 | 50 | 6 | 4 | 2/3 |
3 | 50 | 9 | 4 | 2/3 |
4 | 50 | 12 | 4 | 2/3 |
4 | 75 | 16 | 4 | 2/3 |
4 | 100 | 20 | 4 | 2/3 |
6 | 50 | 18 | 6 | 2/3 |
6 | 75 | 24 | 6 | 2/3 |
6 | 100 | 30 | 6 | 2/3 |
8 | 60 | 24 | 8 | 2/3 |
8 | 75 | 32 | 8 | 2/3 |
8 | 100 | 40 | 8 | 2/3 |
10 | 75 | 30 | 10 | 2/3 |
10 | 100 | 40 | 10 | 2/3 |
12 | 75 | 36 | 12 | 2/3 |
14 | 100 | 45 | 14 | 2/3 |
16 | 100 | 45 | 16 | 2/3 |
18 | 100 | 45 | 18 | 2/3 |
20 | 100 | 45 | 20 | 2/3 |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools.
2. Which shipping method do you usually use?
We usually send goods by express like DHL, UPS, FedEx, etc.
3. How about the delivery time?
We can dispatch within 2 business days after receiving payment for stock items.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
4. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
5. Can you produce special carbide tools?
Yes, we can produce customized carbide tools according to your drawings or samples.
6. Can you do OEM?
Yes, we can
7. Do you have any discounts?
Yes, more quantity will enjoy more discount.
Welcome to send inquiry to us.
8. Where is your factory.
Our factory is in Changzhou City, Jiangsu Province, China.
It’s around 1 hour from Shanghai by High-Speed Train.
9. How many grinding machines do you have now?
Our company has 13 sets of CNC grinding machines.
10. What kind of inspection facilities do you have.
Now we have PG100 and Omega to control the tolerance of cutters.
11. When was your company established?
Our company was established in 2011.
