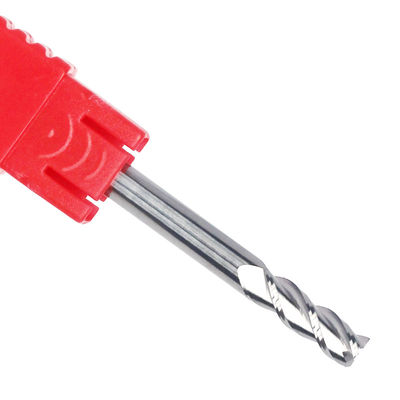

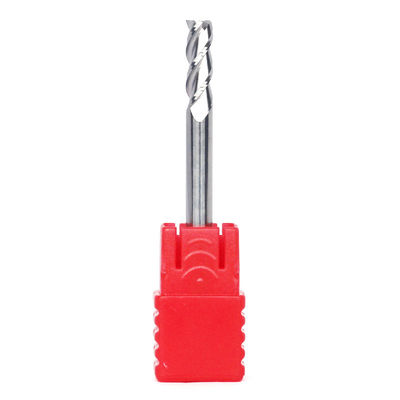

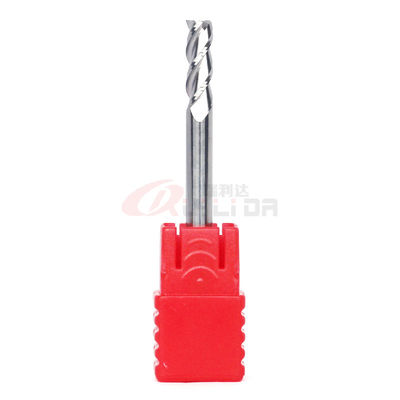

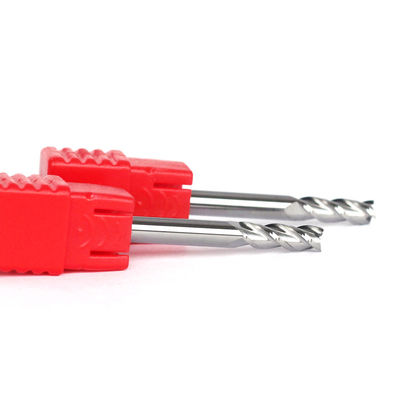

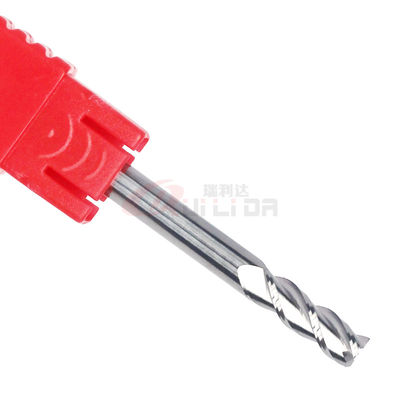

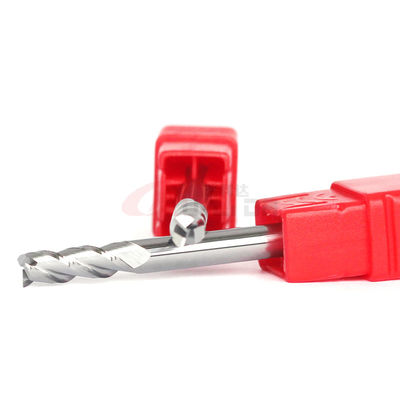

3 Flute Aluminum End Mill Bits 1/8" 4mm Solid Carbide Square End Mill For 7075 Aluminum

  • 3 Flute Aluminum End Mill Bits 1/8" 4mm Solid Carbide Square End Mill For 7075 Aluminum
  • 3 Flute Aluminum End Mill Bits 1/8" 4mm Solid Carbide Square End Mill For 7075 Aluminum
  • 3 Flute Aluminum End Mill Bits 1/8" 4mm Solid Carbide Square End Mill For 7075 Aluminum
  • 3 Flute Aluminum End Mill Bits 1/8" 4mm Solid Carbide Square End Mill For 7075 Aluminum
  • 3 Flute Aluminum End Mill Bits 1/8" 4mm Solid Carbide Square End Mill For 7075 Aluminum
  • 3 Flute Aluminum End Mill Bits 1/8" 4mm Solid Carbide Square End Mill For 7075 Aluminum
  • 3 Flute Aluminum End Mill Bits 1/8" 4mm Solid Carbide Square End Mill For 7075 Aluminum
Place of Origin China
Brand Name RLD Tools
Model Number HRC55-4mm
Minimum Order Quantity 1
Price 2.6USD
Packaging Details 1pcs piece of end mill in one plastic tube, 10pcs a bundle, then in a carton.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 100000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name HRC55 4mm Square End Mill For Aluminum Flute Dia 4mm
Flute Length 12mm Overall Length 50mm
Shank Dia 4mm Flute Number 3
Helix 40° Suitable Finish Milling
Carbide Rod CB WF25 Shank Torlerance H6
High Light

3 flute aluminum end mill bits 1/8" 4mm

,

4mm solid carbide square end mill for 7075 Aluminum

,

1/8 end mill aluminum
Leave a Message
Product Description

HRC55 CNC 3 Flutes Solid Tungsten Carbide 4mm Square Best End Mill for 7075 Aluminum



Product name RLD HRC55 3 flutes 4mm square end mill for Aluminum
Size  4×12×50×4D×3F
Suitable for  Finsih milling
Feature  Non-sticky cutting and shiny surface appearance.
Flute Number  3
Coating  Uncoated
Helix angle  40
Co 12%
HRA 92.2
TRS Min(N/mm²) 3800
Tolerance Within 0/-0.02mm
Processing machine ANCA/





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45
HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62



                                                            Coating   Introduction

Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating can be customized according to your requirement



RLD Square End Mill for Aluminium Standard Size
HRC50
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 3 4 2/3
2 50 6 4 2/3
3 50 9 4 2/3
4 50 12 4 2/3
4 75 16 4 2/3
4 100 20 4 2/3
6 50 18 6 2/3
6 75 24 6 2/3
6 100 30 6 2/3
8 60 24 8 2/3
8 75 32 8 2/3
8 100 40 8 2/3
10 75 30 10 2/3
10 100 40 10 2/3
12 75 36 12 2/3
14 100 45 14 2/3
16 100 45 16 2/3
18 100 45 18 2/3
20 100 45 20 2/3

3 Flute Aluminum End Mill Bits 1/8" 4mm Solid Carbide Square End Mill For 7075 Aluminum 03 Flute Aluminum End Mill Bits 1/8" 4mm Solid Carbide Square End Mill For 7075 Aluminum 1

                                       FAQ



1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide round tools.



2. Which shipping method do you usually use?

We usually send goods by express like DHL, UPS, FedEx, etc.

We also can send the parcels to your shipping agent in China.



3. How about the delivery time?

We can dispatch within 2 business days after receiving payment for stock items.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.



4. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.



5. Can you produce customized carbide tools?

Yes, we can produce customized carbide tools according to your drawings or samples.



6. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make customized stickers.



7. Do you have any discounts?

Yes, more quantity will enjoy more discount.

Welcome to send inquiry to us.



8. When was your factory established?
Our factory was established in 2011.


9. What is the location of your factory?
Our factory is located in Changzhou City, Jiangsu Province, China.
