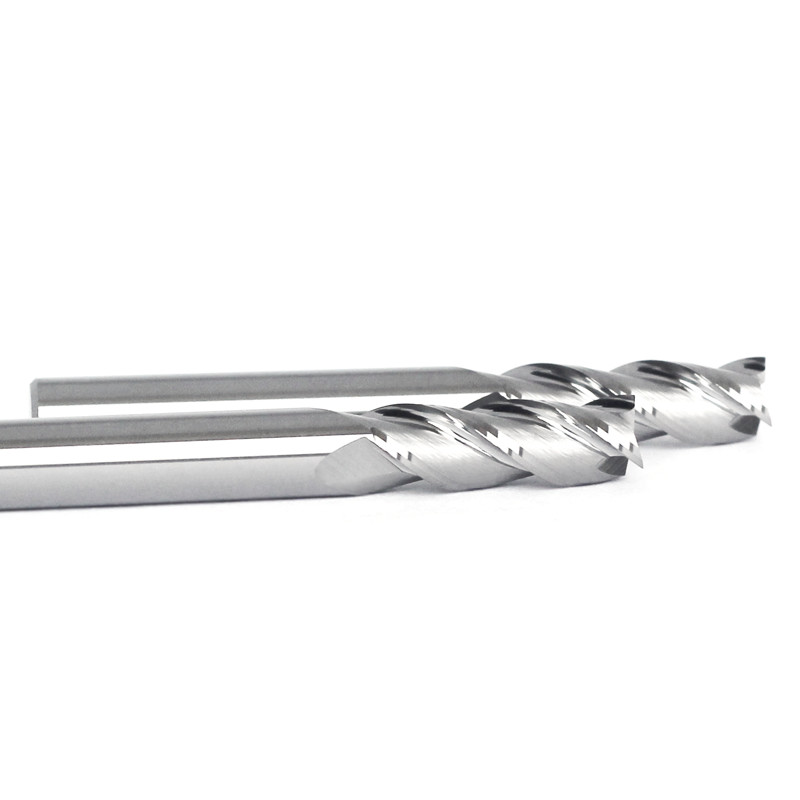

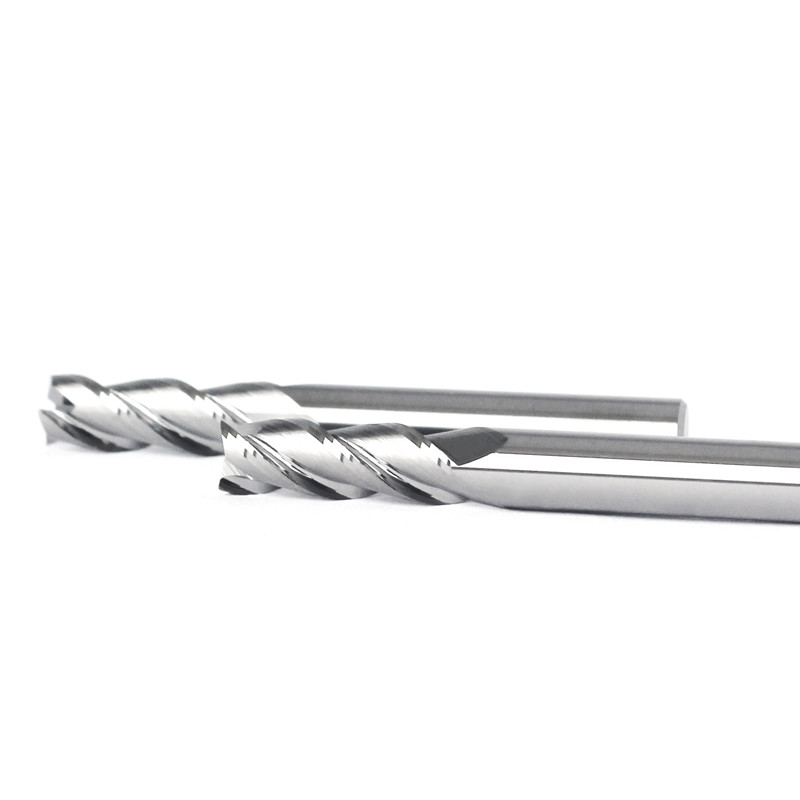

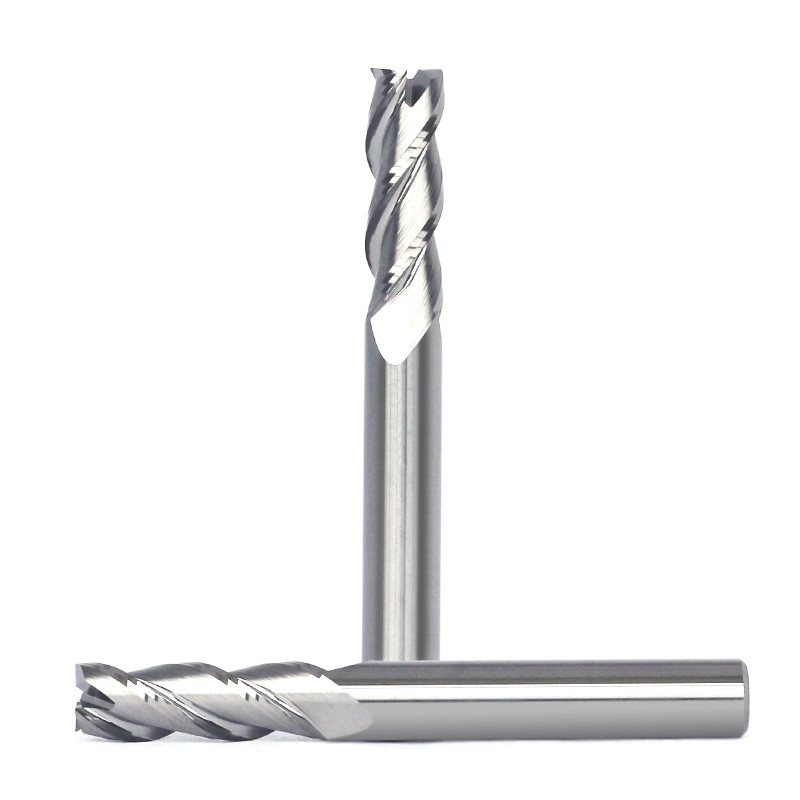

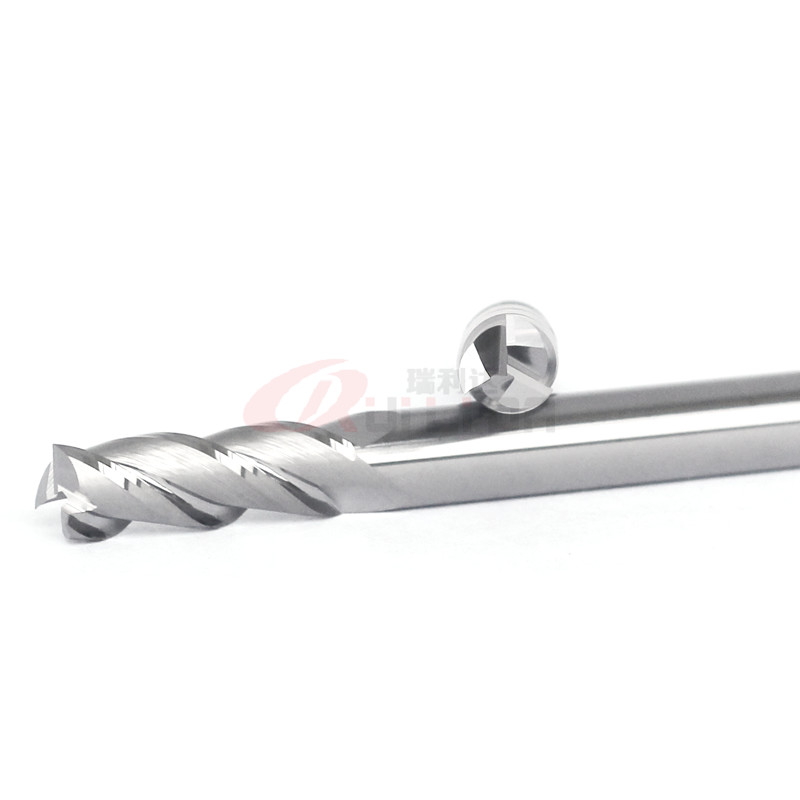

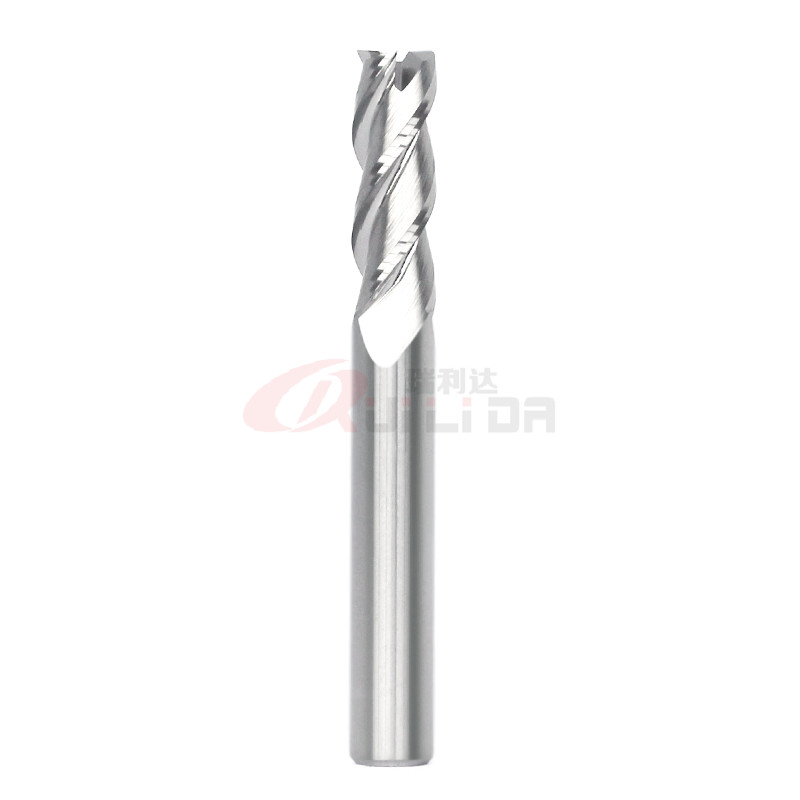

6mm 5/16" 1/4" Aluminum End Mill Router Bit Finish Milling Uncoated
| Place of Origin | China |
|---|---|
| Brand Name | RLD Tools |
| Model Number | HRC55-6mm |
| Minimum Order Quantity | 1 |
| Price | 4.5USD/negotiable |
| Packaging Details | 1pcs piece of end mill in one plastic tube, 10pcs a bundle, then in a carton. |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T/PayPal/Credit Card |
| Supply Ability | 100000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HRC55 6mm Square End Mill For Aluminum | Flute Dia | 6mm |
|---|---|---|---|
| Flute Length | 18mm | Overall Length | 50mm |
| Shank Dia | 6mm | Flute Number | 3 |
| Helix | 40° | Suitable | Finish Milling |
| Carbide Rod | CB WF25 | Shank Torlerance | H6 |
| Brand | RLD | ||
| High Light | 5/16 aluminum end mill HRC55 RLD,6mm 1/4" aluminum end mill router bit,6mm end mill for aluminum |
||
Product Description
HRC55 3 Flute Solid Tungsten Carbide End Mills for Aluminum for Finish Milling Uncoated
| Product name | RLD HRC55 3 flutes 6mm square end mill for Aluminum |
| Size | 6×18×50×6D×3F |
| Suitable for | Finish milling |
| Feature | Mirror surface |
| Flute Number | 3 |
| Coating | Uncoated |
| Helix angle | 40 |
| Co | 12% |
| HRA | 92.2 |
| TRS Min(N/mm²) | 3800 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating can be customized according to your requirement |
| RLD Square End Mill for Aluminium Standard Size HRC50 |
||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 1 | 50 | 3 | 4 | 2/3 |
| 2 | 50 | 6 | 4 | 2/3 |
| 3 | 50 | 9 | 4 | 2/3 |
| 4 | 50 | 12 | 4 | 2/3 |
| 4 | 75 | 16 | 4 | 2/3 |
| 4 | 100 | 20 | 4 | 2/3 |
| 6 | 50 | 18 | 6 | 2/3 |
| 6 | 75 | 24 | 6 | 2/3 |
| 6 | 100 | 30 | 6 | 2/3 |
| 8 | 60 | 24 | 8 | 2/3 |
| 8 | 75 | 32 | 8 | 2/3 |
| 8 | 100 | 40 | 8 | 2/3 |
| 10 | 75 | 30 | 10 | 2/3 |
| 10 | 100 | 40 | 10 | 2/3 |
| 12 | 75 | 36 | 12 | 2/3 |
| 14 | 100 | 45 | 14 | 2/3 |
| 16 | 100 | 45 | 16 | 2/3 |
| 18 | 100 | 45 | 18 | 2/3 |
| 20 | 100 | 45 | 20 | 2/3 |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide round tools was established in 2011.
2. Which shipping method do you usually use?
We usually send goods by express like DHL, UPS, FedEx, etc.
We also can send the parcels to your shipping agent in China.
3. How about the delivery time?
We can dispatch within 2 business days after receiving payment for stock items.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
4. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
5. Can you produce customized carbide tools?
Yes, we can produce customized carbide tools according to your drawings or samples.
6. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make customized stickers.
7. Do you have any discounts?
Yes, more quantity will enjoy more discount.
Welcome to send inquiry to us.
8. What kind of grinding machines are you using now?
ANCA &
9. What kind of grinding wheels do you use?
We are using WINTER brand grinding wheels.
They are imported from Germany.
A High-quality grinding wheel is also important for the quality of carbide tools.
