10 Pcs 11/16" 1/16" 4mm 2mm 4 Flute End Mill Set Bits RLD Tools
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | HRC60 Solid Carbide End Mill2mm | Raw Material | GU25UF From GESAC |
|---|---|---|---|
| Flutes | 4 | Coating | TiAlN |
| Diameter | 2mm | Flute Length | 5mm |
| Overall Length | 50mm | Shank Diameter | 4mm |
| Shank Tolerance | H6 | Grain Size | 0,6μm |
| High Light | 10 pcs 4-flute end mill bits,11/16 4 flute end mill HRC60 RLD,4 flute 4mm end mill HRC60 RLD |
||
Product Description

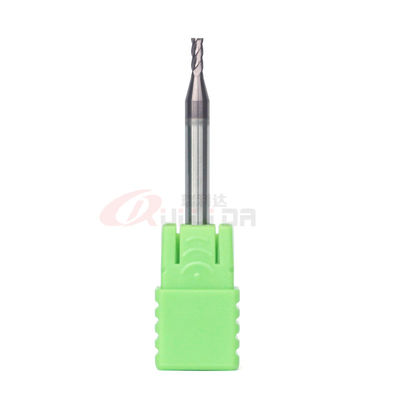

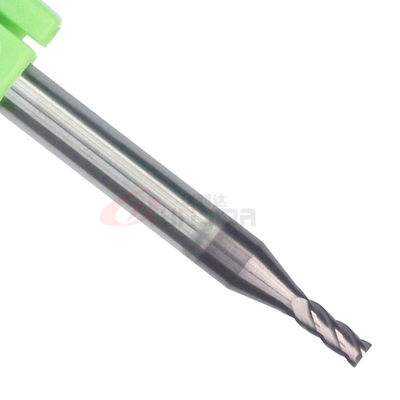

HRC60 4 Flute Variable Helix CNC Solid Carbide End Mill For Stainless Steel 2mm Carbide End Mill
| Product name | RLD HRC60 4 flute square solid carbide end mill 2mm |
| Specification | 2*5*50*4D*4F |
| Suitable for | Steel, alloy steel, stainless steel, titanium, etc. |
| Machine type | Side Milling |
| Flutes | 4 |
| Coating | TiAlN/Others |
| Helix | Variable Helix |
| Co | 12% |
| HRA | 92.5 |
| TRS Min(N/mm²) | 4200 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | ZY10EF | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized according to client's need |
| RLD HRC60 Square End Mill Standard Size | ||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 1 | 50 | 2.5 | 4 | 4 |
| 1.5 | 50 | 4 | 4 | 4 |
| 2 | 50 | 5 | 4 | 4 |
| 2.5 | 50 | 6.5 | 4 | 4 |
| 3 | 50 | 7.5 | 3 | 4 |
| 3 | 50 | 7.5 | 4 | 4 |
| 3.5 | 50 | 9 | 4 | 4 |
| 4 | 50 | 10 | 4 | 4 |
| 4 | 75 | 14 | 4 | 4 |
| 4 | 100 | 18 | 4 | 4 |
| 5 | 50 | 13 | 5 | 4 |
| 5 | 50 | 13 | 6 | 4 |
| 6 | 50 | 15 | 6 | 4 |
| 6 | 75 | 21 | 6 | 4 |
| 6 | 100 | 27 | 6 | 4 |
| 8 | 60 | 20 | 8 | 4 |
| 8 | 75 | 30 | 8 | 4 |
| 8 | 100 | 35 | 8 | 4 |
| 10 | 75 | 25 | 10 | 4 |
| 10 | 100 | 40 | 10 | 4 |
| 12 | 75 | 30 | 12 | 4 |
| 12 | 100 | 45 | 12 | 4 |
| 14 | 100 | 45 | 14 | 4 |
| 16 | 100 | 45 | 16 | 4 |
| 18 | 100 | 45 | 18 | 4 |
| 20 | 100 | 45 | 20 | 4 |
| 6 | 150 | 35 | 6 | 4 |
| 8 | 150 | 50 | 8 | 4 |
| 10 | 150 | 55 | 10 | 4 |
| 12 | 150 | 60 | 12 | 4 |
| 14 | 150 | 65 | 14 | 4 |
| 16 | 150 | 65 | 16 | 4 |
| 18 | 150 | 65 | 18 | 4 |
| 20 | 150 | 75 | 20 | 4 |
Our package
Step1: The end mill has been finished producing and sent to the warehouse
Step2: 1pcs put in a plastic tube, 10pieces per group with a rubber band
Step3: Use the air bubble film to encase the plastic tube
Step4: Put the goods encased with air bubble film in a small packing carton
Step5: Put another air bubble film on the goods and packaging
Step6: Sent by logistics company or express according to customer's need
More pictures
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools which established in 2011.
2. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machine.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
6. Do you attend international exhibitions?
Yes, we had attended exhibitions in Indonesia, India, Russia, Thailand, Vietnam,
Brazil, etc.
7. Can you produce special carbide tools?
Yes, we can produce special carbide tools according to your drawings or samples.
