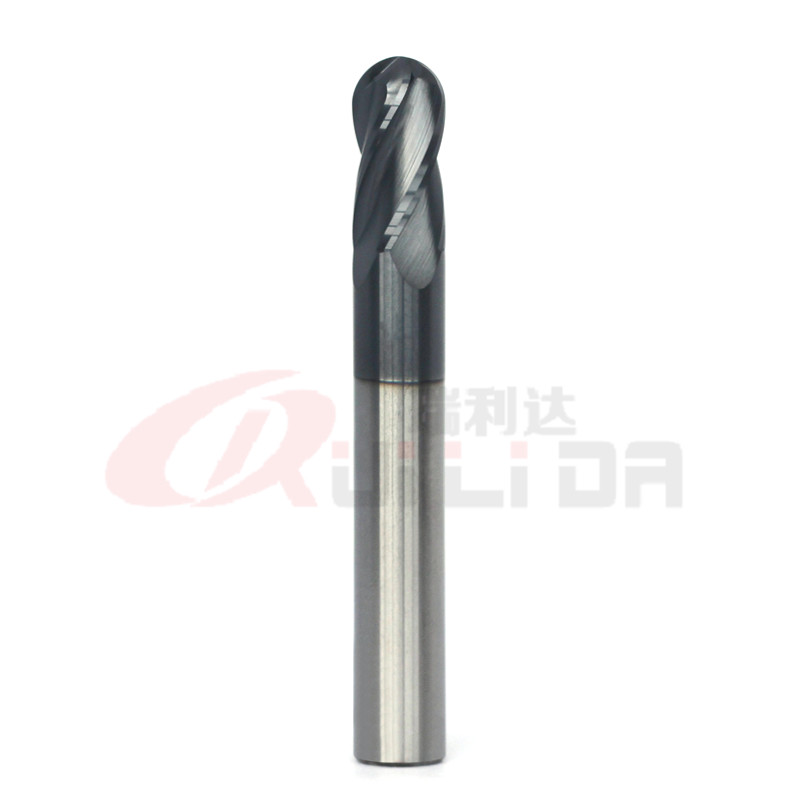

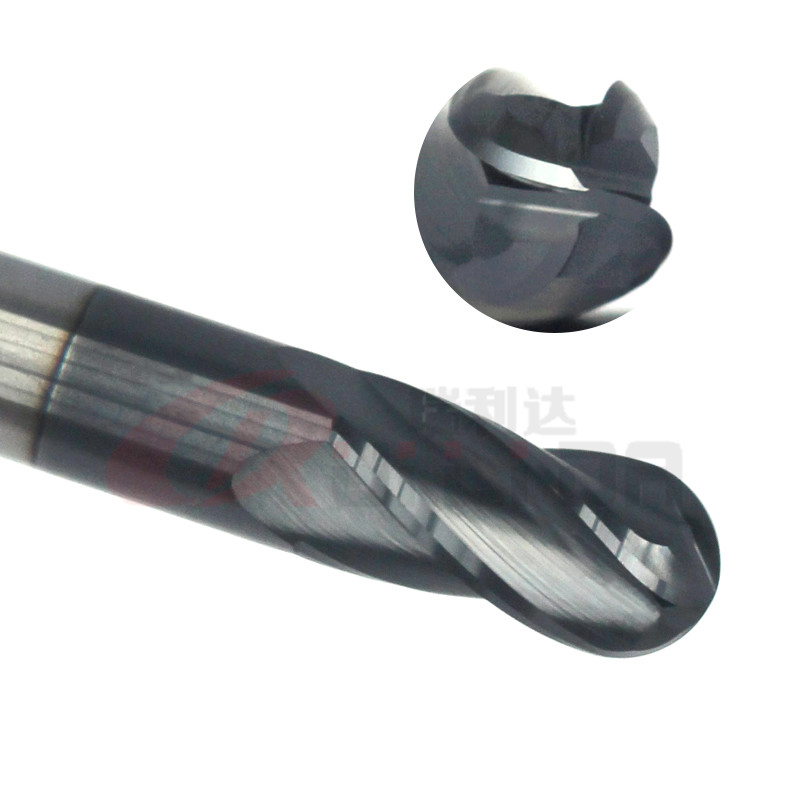

10mm 3/8 Carbide Ball Nose End Mill Cnc Router Bits 4 Flutes

  • 10mm 3/8 Carbide Ball Nose End Mill Cnc Router Bits 4 Flutes
  • 10mm 3/8 Carbide Ball Nose End Mill Cnc Router Bits 4 Flutes
  • 10mm 3/8 Carbide Ball Nose End Mill Cnc Router Bits 4 Flutes
Place of Origin China
Brand Name RLD Tools
Model Number HRC50
Minimum Order Quantity 1
Price Negotiable
Packaging Details 1pcs endmill in a plastic pipe, ten pieces a rubber bundle, then in a carton.
Delivery Time 5-7 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 1000000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name HRC50 4 Flutes Ball Nose End Mill 10mm Diameter 10mm
Flute Length 20mm Overall Length 75mm
Shank Diameter 10mm Coating AlTiN
Carbide Rod ZY10EF Zhangyuan Origin Jiangsu, China
High Light

10mm 3/8 Carbide Ball Nose End Mill Cnc Router Bits

,

3/8 ball nose cutter

,

3/8 ball nose router bit
Leave a Message
Product Description

HRC50 Carbide 10mm Ball Nose CNC Milling Cutter 4 Flutes Ball Nose End Mill





Product name RLD HRC50 4 flute 10mm ball nose end mill
Specification  R5*20*75*10D*4F
Suitable for  Iron, cast iron, low alloy steel, etc.
Milling type CNC Milling Machine
Flutes 4
Coating  AlTiN/Others
Helix 30
Co 10%
HRA 91.8
TRS Min(N/mm²) 4000
Flute Tolerance Within 0/-0.02mm
Process machine  ANCA &





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 ZY10EF 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45
HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized





       RLD HRC50 4F Carbide Ball Nose End Mill Standard Size
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 2 4 4
1.5 50 3 4 4
2 50 4 4 4
2.5 50 5 4 4
3 50 6 3 4
3 50 7.5 4 4
3.5 50 9 4 4
4 50 10 4 4
4 75 14 4 4
4 100 18 4 4
5 50 13 5 4
5 50 13 6 4
6 50 15 6 4
6 75 21 6 4
6 100 27 6 4
8 60 20 8 4
8 75 30 8 4
8 100 35 8 4
10 75 20 10 4
10 100 20 10 4
12 75 24 12 4
12 100 24 12 4
14 100 28 14 4
16 100 32 16 4
18 100 36 18 4
20 100 40 20 4
6 150 12 6 4
8 150 16 8 4
10 150 20 10 4
12 150 24 12 4
14 150 28 14 4
16 150 32 16 4
18 150 36 18 4
20 150 40 20 4



Our package



Step1: The end mill has been finished producing and sent to the warehouse



Step2: 1pcs put in a plastic film, 10pcs per group with a rubber band



Step3: Use the air bubble film to encase the plastic pipe



Step4: Put the goods encased with air bubble film in small packing cartons



Step5: Put another air bubble film on the goods and packaging



Step6: Sent by logistics company or express according to customer's need

10mm 3/8 Carbide Ball Nose End Mill Cnc Router Bits 4 Flutes 0





                                                     FAQ

1. Are you a manufacturer or trading company?

We are a manufacturer of carbide tools established in 2011.



2. Which CNC grinding machines do you use?

All of our carbide end mills are produced by ANCA &  machines.



3. Which shipping method do you usually use?

We usually send goods by express like FedEx, UPS, DHL, EMS, ARAMEX, ETC.

We also can ship the goods to your agent in China.



4. How about the delivery time?

For stock items, we can dispatch within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.



5. Which payment methods do you accept?

We can accept T/T/Credit Card/PayPal, etc.

We also can accept CNY.



6. Can you produce the customized carbide endmills?

Yes, we can produce customized carbide tools.



7. Where is your factory located?
Our factory is located in the east of China, Changzhou City.


8. What kind of inspection facilities do you have.
We have PG1000, Omega inspection facilities to check the precision of each tool.
