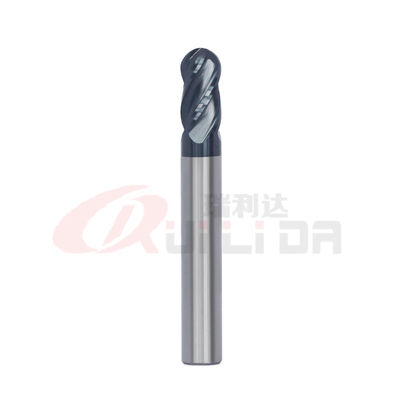

8mm 4F 9/16" 7/16" 5/16" Ball Nose End Mill Steel Cnc Ball Nose Bit
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HRC50 4 Flutes Ball Nose End Mill 8mm | Diameter | 8mm |
|---|---|---|---|
| Flute Length | 16mm | Overall Length | 60mm |
| Shank Diameter | 8mm | Suitable For | Iron, Cast Iron, Normal Steel, Etc. |
| Carbide Rod | ZY10EF Zhangyuan Carbide | Origin | Jiangsu, Changzhou |
| High Light | HRC50 7/16 ball nose end mill,8mm 4F 5/16" 9/16 ball nose end mill,8mm 4F 5/16" Ball Nose End Mill Wood |
||
Product Description

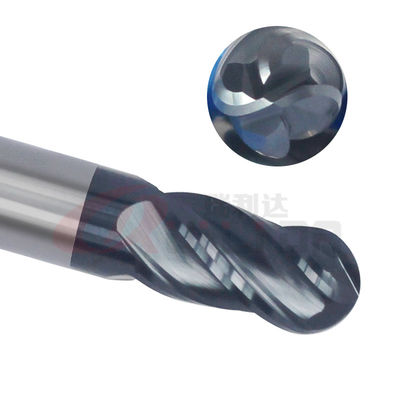

HRC50 Carbide 8mm Ball Nose CNC Milling Cutter 4 Flutes Ball Nose End Mill
They can be used for plunging, grooving, side milling, and profile cutting.
These mills are coated with high-performance AlTiN.
They are available in a wide variety of diameter sizes from 1/64" to 1" and 1mm to 25mm.
| Product name | RLD HRC50 4 flute 8mm ball nose end mill |
| Specification | R4*16*60*8D*4F |
| Suitable for | Iron, cast iron, normal steel, etc. |
| Milling type | CNC Milling Machine |
| Flutes | 4 |
| Coating | AlTiN/Others |
| Helix | 30 |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 4000 |
| Flute Tolerance | Within 0/-0.02mm |
| Process machine | ANCA & |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | ZY10EF | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized |
| RLD HRC50 4F Carbide Ball Nose End Mill Standard Size | ||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 1 | 50 | 2 | 4 | 4 |
| 1.5 | 50 | 3 | 4 | 4 |
| 2 | 50 | 4 | 4 | 4 |
| 2.5 | 50 | 5 | 4 | 4 |
| 3 | 50 | 6 | 3 | 4 |
| 3 | 50 | 7.5 | 4 | 4 |
| 3.5 | 50 | 9 | 4 | 4 |
| 4 | 50 | 10 | 4 | 4 |
| 4 | 75 | 14 | 4 | 4 |
| 4 | 100 | 18 | 4 | 4 |
| 5 | 50 | 13 | 5 | 4 |
| 5 | 50 | 13 | 6 | 4 |
| 6 | 50 | 15 | 6 | 4 |
| 6 | 75 | 21 | 6 | 4 |
| 6 | 100 | 27 | 6 | 4 |
| 8 | 60 | 20 | 8 | 4 |
| 8 | 75 | 30 | 8 | 4 |
| 8 | 100 | 35 | 8 | 4 |
| 10 | 75 | 20 | 10 | 4 |
| 10 | 100 | 20 | 10 | 4 |
| 12 | 75 | 24 | 12 | 4 |
| 12 | 100 | 24 | 12 | 4 |
| 14 | 100 | 28 | 14 | 4 |
| 16 | 100 | 32 | 16 | 4 |
| 18 | 100 | 36 | 18 | 4 |
| 20 | 100 | 40 | 20 | 4 |
| 6 | 150 | 12 | 6 | 4 |
| 8 | 150 | 16 | 8 | 4 |
| 10 | 150 | 20 | 10 | 4 |
| 12 | 150 | 24 | 12 | 4 |
| 14 | 150 | 28 | 14 | 4 |
| 16 | 150 | 32 | 16 | 4 |
| 18 | 150 | 36 | 18 | 4 |
| 20 | 150 | 40 | 20 | 4 |
FAQ
1. Are you a manufacturer or trading company?
We are a manufacturer of carbide tools established in 2011.
2. Which CNC grinding machines do you use?
All of our carbide end mills are produced by ANCA & machines.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, EMS, ARAMEX, ETC.
We also can ship the goods to your agent in China.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We can accept T/T/Credit Card/PayPal, etc.
We also can accept CNY.
6. Can you produce the customized carbide endmills?
Yes, we can produce customized carbide tools.
7. Where is your factory located?
Our factory is located in the east of China, Changzhou City.
8. What kind of inspection facilities do you have.
We have PG1000, Omega inspection facilities to check the precision of each tool.
