10mm 2 Flute Aluminum End Mill For Router 30 Degree

Place of Origin China
Brand Name RLD Tools
Model Number HRC50
Minimum Order Quantity 1
Price Negotiable
Packaging Details 1pcs piece of end mill in one plastic tube, 10pcs a bundle, then in a carton.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 100000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name HRC50 2 Flute Ball Nose Aluminum End Mill 10R5 Flute Dia 10R5
Flute Length 30mm Overall Length 75mm
Shank Dia 10mm Shank Tolerance H6
Tolerance 0/-0.015mm Suitable Aluminium, Plastic, Acrylic, Etc.
High Light

10mm 2 Flute aluminum end mill for router HRC50

,

2 Flute aluminum end mill for router 30 degree

,

router end mill bits for aluminum HRC50 RLD

Leave a Message
Product Description

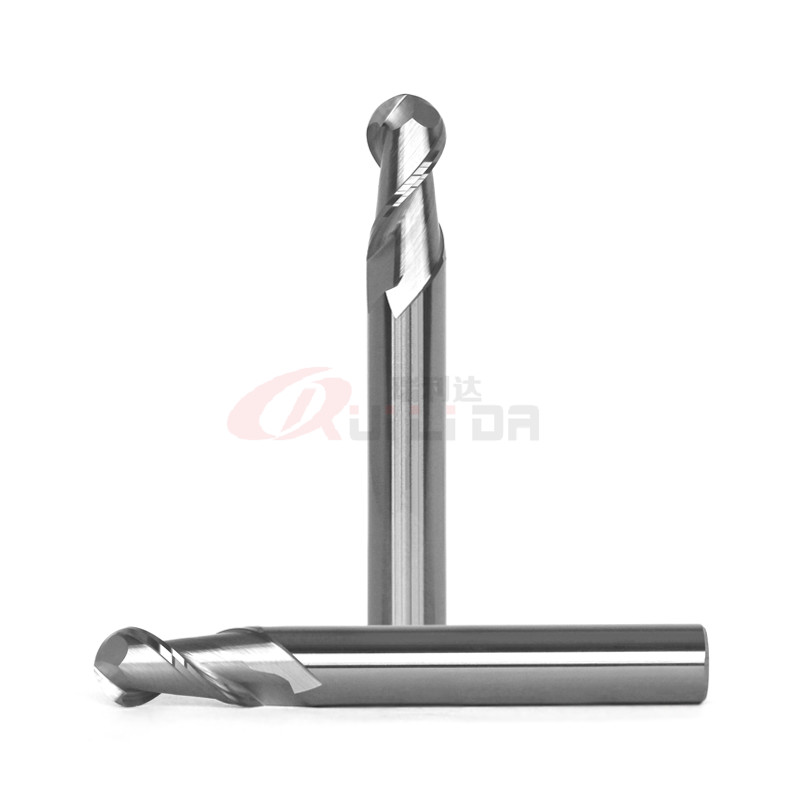

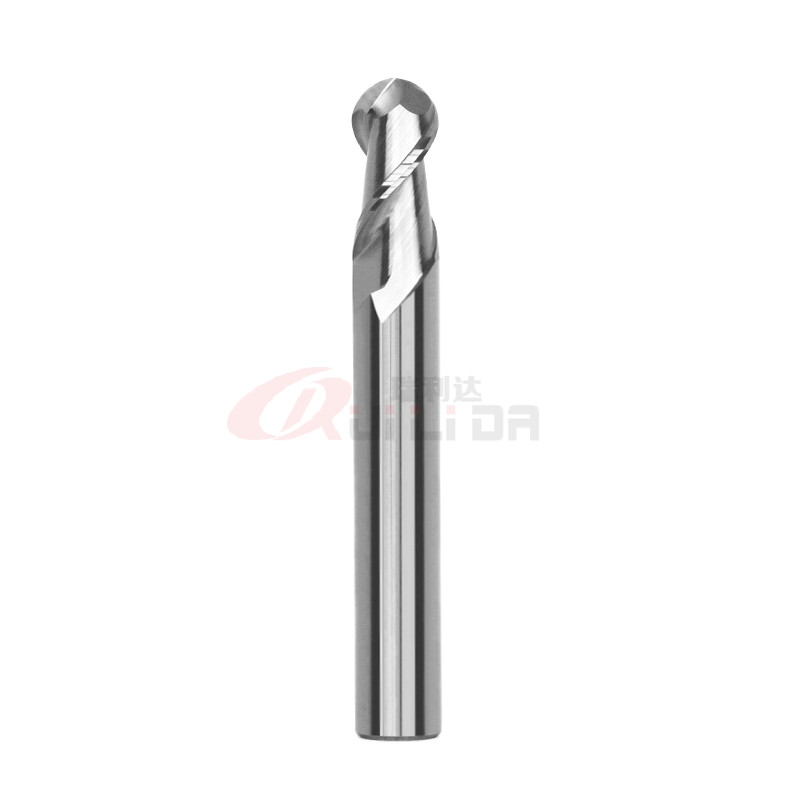

HRC50 2 Flute Tungsten Solid Carbide Aluminum End Mill 10mm Ball Milling Bits For Aluminum



Product name RLD HRC50 2 Flute Ball Nose Aluminum End Mill 10mm
Size  R5×20×75×10D×2F
Suitable for  Aluminum, plastic, brass, etc.
Feature  Finishing
Flute Number  2
Coating  Uncoated/Others
Helix angle 30
Co 10%
HRA 91.8
TRS Min(N/mm²) 4000
Tolerance Within 0/-0.02mm
Processing machine ANCA/





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62



                                                            Coating   Introduction

Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized







RLD 2F Ball Nose Aluminum End Mill Standard Size HRC50
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
1 50 2 4 2
2 50 4 4 2
3 50 6 4 2
4 50 8 4 2
4 75 8 4 2
4 100 8 4 2
6 50 12 6 2
6 75 12 6 2
6 100 12 6 2
8 60 16 8 2
8 75 16 8 2
8 100 16 8 2
10 75 20 10 2
10 100 20 10 2
12 75 24 12 2
14 100 28 14 2
16 100 32 16 2
18 100 36 18 2
20 100 40 20 2



Our Package



Step1: The end mill has been finished producing and sent to the warehouse


Step2: 1pcs put in a plastic tube, 10pieces per group with a rubber band


Step3: Use the air bubble film to encase the plastic tube


Step4: Put the goods encased with air bubble film in small packing cartons


Step5: Put another air bubble film on the goods and packaging


Step6: Sent by logistics company or express according to customer's need

10mm 2 Flute Aluminum End Mill For Router 30 Degree 0

                         FAQ



1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools established in 2011.



2. Which shipping method do you usually use?

We usually send goods by express like DHL, UPS, FedEx, ARAMEX, etc.



3. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.



4. Can you produce customized carbide tools?

Yes, we can produce customized carbide tools according to your drawings or samples.



5. Can you do OEM?
Yes, we can.



6. What kind of grinding machines are you using now?

We are using ANCA & machines.

They are the famous carbide tool grinding machines in the world.



7. What kind of inspection facilities do you have.
We have PG1000, Omega inspection facilities to ensure the precision of each tool.



8. Do you have any discounts?
Yes, more quantity will enjoy more discount.
Welcome to send inquiry to us.
