5/16" 8mm 4 Flute Roughing End Mill Aluminum HRC60 Fine Pitch For Stainless Steel

Place of Origin China
Brand Name RLD Tools
Model Number HRC60
Minimum Order Quantity 1
Price 6-80USD/negotiable
Packaging Details One piece end mill in a plastic tube, ten pieces a bundle, then in carton.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 20000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name HRC60 Roughing End Mill For Steel 8mm Coating AlTiN
Raw Material GU25UF Diameter 8mm
Flute Length 20mm Overall Length 60mm
Suitable For Steel, Stainless Steel, Etcl Pitch Type Fine Pitch
High Light

8mm roughing end mill HRC60 RLD

,

5/16 roughing end mill HRC60 RLD

,

fine pitch roughing end mill

Leave a Message
Product Description

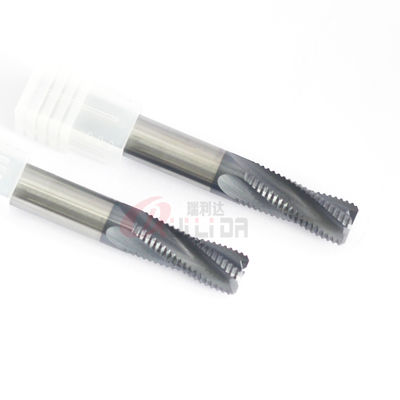

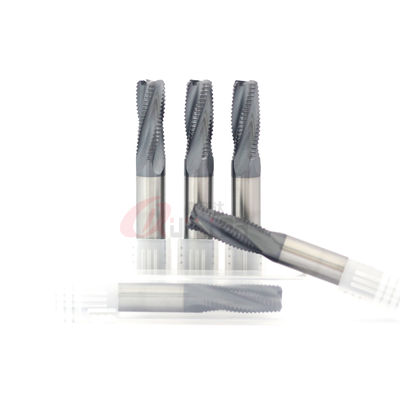

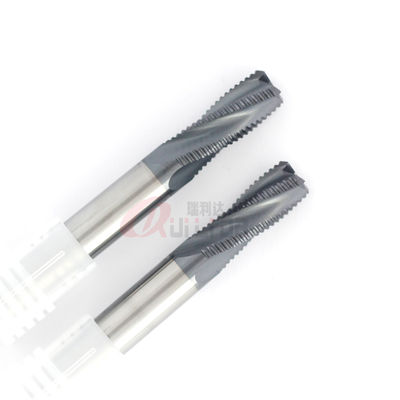

HRC60 4 Flutes 8mm Roughing End Mill Fine Pitch For Stainless Steel



Roughing End Mills, also known as ripping cutters or hoggers, are designed to

remove large amounts of metal quickly and more efficiently than standard end mills.



Product name

 HRC60 4 Flutes 8mm Roughing End Mill

Feature Fine pitch
Suitable for  Steel, stainless steel
Machine type CNC milling machine
Flutes 4
Coating  AlTiN
Helix angle 30 degree
Co 12%
HRA 92.5
TRS Min(N/mm²) 4000
Tolerance Within 0/-0.02mm
Processing machine ANCA/





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized according to your requirement.





HRC60 Roughing End Mill for Steel

Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
6 50 15 6 4
8 60 20 8 4
10 75 22 10 4
12 75 27 12 4
14 100 40 14 4
16 100 45 16 4
18 100 45 18 4
20 100 45 20 4





5/16" 8mm 4 Flute Roughing End Mill Aluminum HRC60 Fine Pitch For Stainless Steel 0





                                                                                FAQ



1. Are you a manufacturer or trading company?

We are a professional manufacturer of the solid carbide end mill.



2. Which CNC grinding machine do you use?

ANCA and machine.



3. How do you usually dispatch the tools?

We usually send goods by express like FedEx, UPS, DHL, TNT, ARAMEX, ETC.



4. How about the delivery time?

We can dispatch the stock goods within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

It is around 7-10 business days.



5. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.



6. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make customized stickers.



7. Do you have a discount for the large amount?
Yes, we have a discount for large quantities.



8. How do you ensure the stability of quality?
Our company seldom change rod suppliers.
And we only sell the tools produced by ourselves.
So for the same grade, our quality is always the same.
