1/2" 12mm diamond roughing end mill For Stainless Steel Fine Pitch 4Fl HRC60
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HRC60 Roughing End Mill For Steel 12mm | Coating | AlTiN Coating |
|---|---|---|---|
| Raw Material | GU25UF GESAC | Diameter | 12mm |
| Flute Length | 27mm | Overall Length | 75mm |
| Suitable For | Steel, Stainless Steel, Inconel, Etc | Milling Type | CNC Rough Milling |
| High Light | 12mm roughing end mill HRC60 RLD,1/2 roughing end mill HRC60 RLD,diamond end mill cutting tools |
||
Product Description

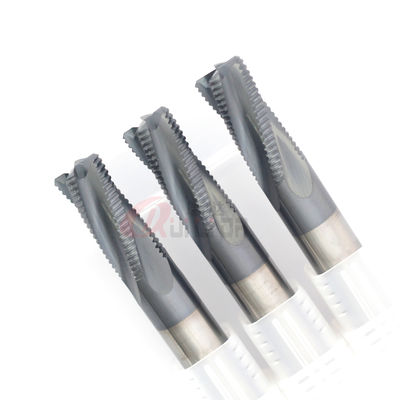

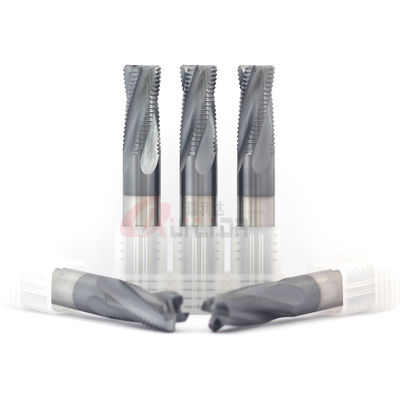

HRC60 4 Flutes 12mm Roughing End Mill Fine Pitch For Stainless Steel
Fine tooth roughing end mills remove less material but the pressure is distributed over many more teeth,
for longer tool life and a smoother finish on high-temperature alloys and stainless steel.
| Product name |
HRC60 4 Flutes 12mm Roughing End Mill |
| Feature | Fine pitch |
| Suitable for | Steel, stainless steel, etc. |
| Machine type | Rough milling |
| Flutes | 4 |
| Coating | AlTiN |
| Helix angle | 30° |
| Co | 12% |
| HRA | 92.5 |
| TRS Min(N/mm²) | 4000 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized |
|
HRC60 Roughing End Mill for Steel |
||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 6 | 50 | 15 | 6 | 4 |
| 8 | 60 | 20 | 8 | 4 |
| 10 | 75 | 22 | 10 | 4 |
| 12 | 75 | 27 | 12 | 4 |
| 14 | 100 | 40 | 14 | 4 |
| 16 | 100 | 45 | 16 | 4 |
| 18 | 100 | 45 | 18 | 4 |
| 20 | 100 | 45 | 20 | 4 |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of the solid carbide end mill.
2. Which CNC grinding machine do you use?
ANCA and machine.
3. How do you usually dispatch the tools?
We usually send goods by express like FedEx, UPS, DHL, TNT, ARAMEX, ETC.
4. How about the delivery time?
We can dispatch the stock goods within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
It is around 7-10 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
6. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make customized stickers.
7. Do you have a discount for the large amount?
Yes, we have a discount for large quantities.
