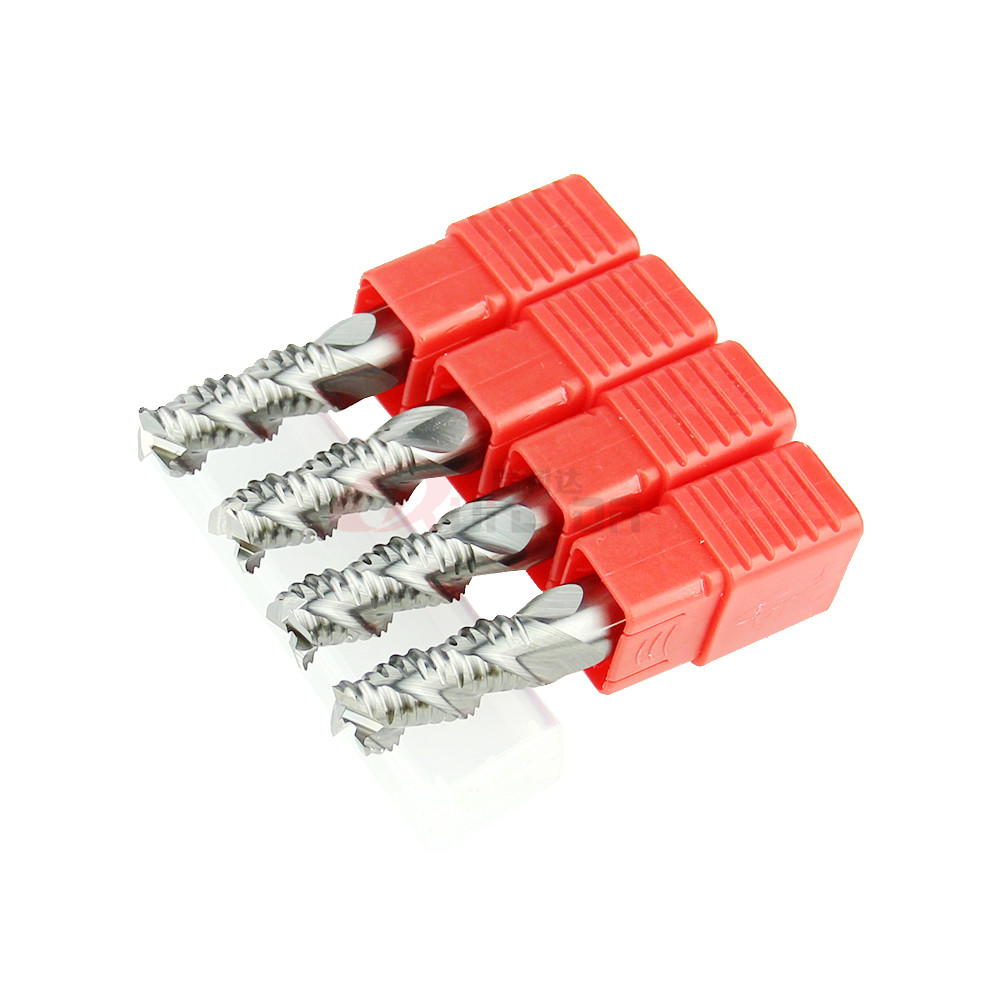

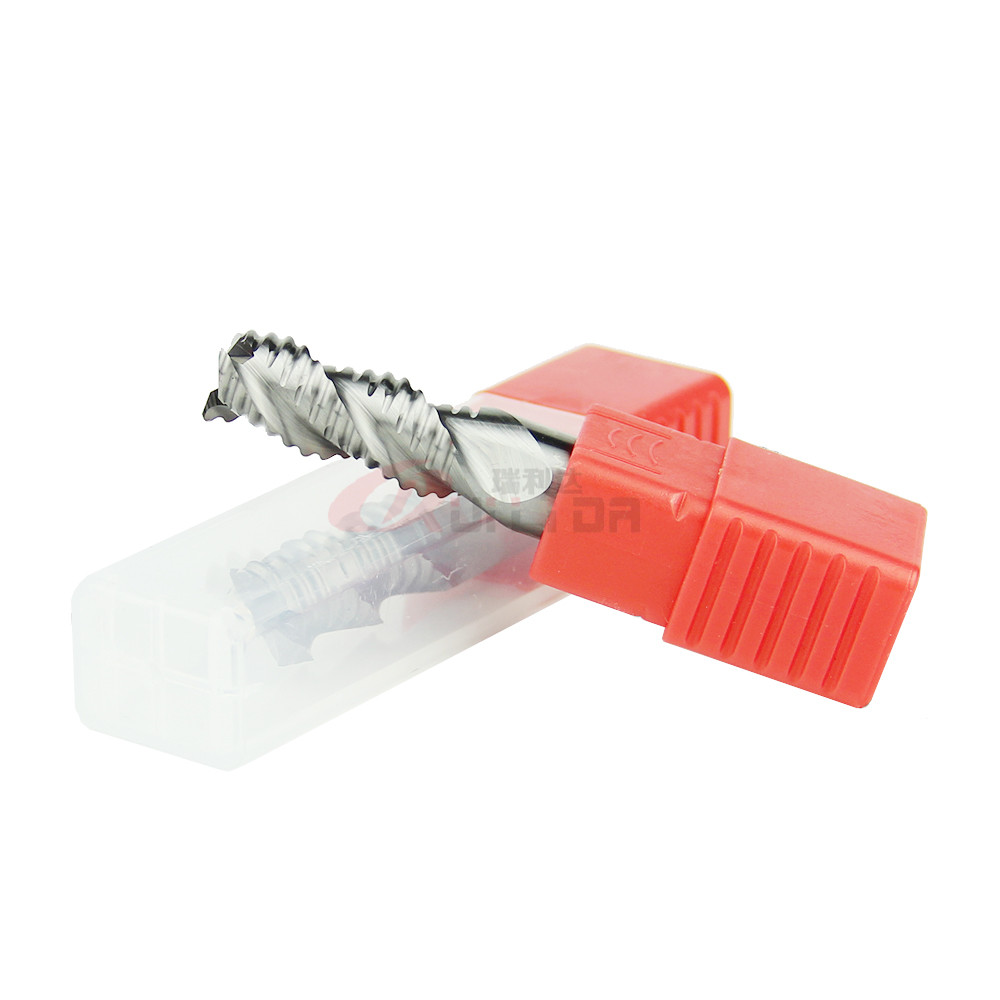

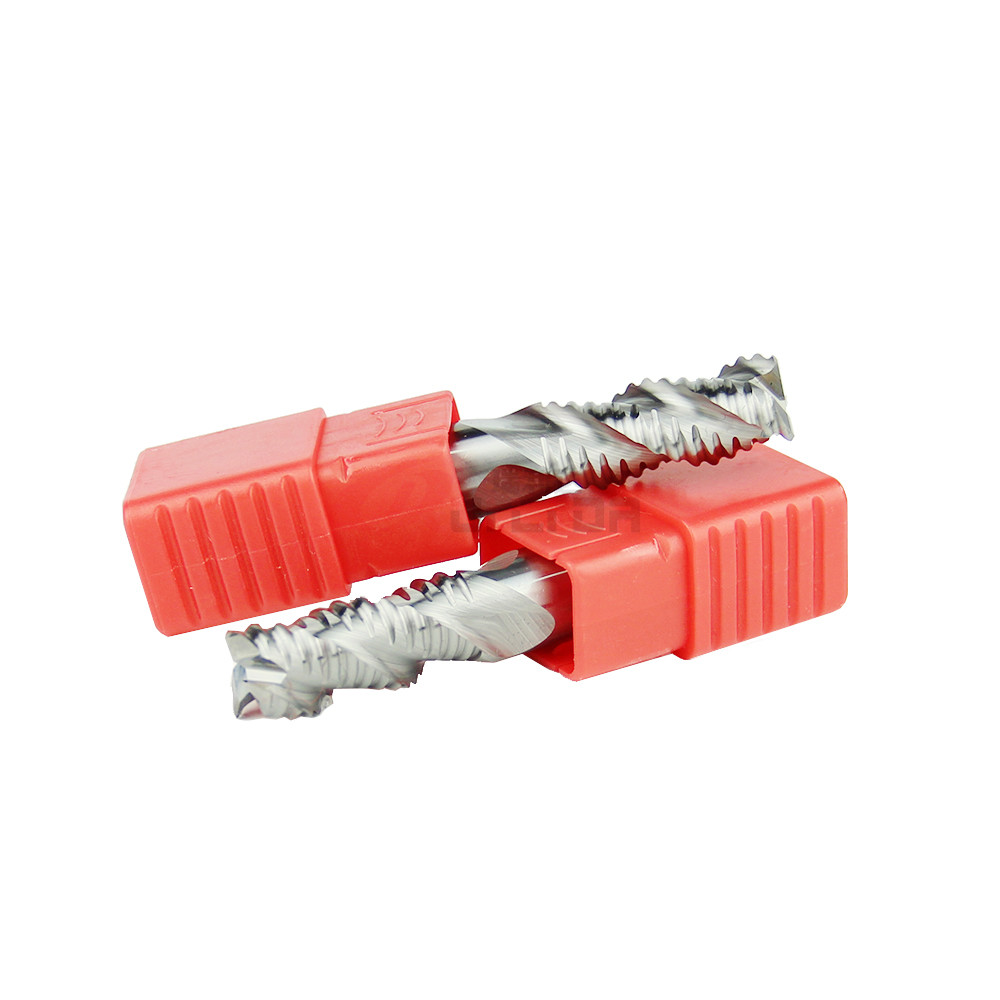

0.393" 3/8 Large Cobalt Carbide Roughing End Mill

Place of Origin China
Brand Name RLD Tools
Model Number HRC50
Minimum Order Quantity 1
Price Negotiable
Packaging Details One piece end mill in a plastic tube, ten pieces a bundle, then in carton.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 20000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name HRC50 3 Flutes Roughing End Mill For Aluminum Coating Uncoated/customized
Raw Material YG10X Carbide Suitable For Aluminum, Brass, Soft Metal, Etc
Produced By ANCA / Tolerance 0/-0.02mm
High Light

0.393" 3/8 carbide roughing end mill

,

0.393" carbide roughing end mill cutter

,

0.393" 3/8 large roughing end mill

Leave a Message
Product Description

HRC50 Roughing End Mill For Aluminum Uncoated Rough End Mill Carbide



Product name

 HRC50 3 Flutes Roughing End Mill for Aluminum

Feature Coarse pitch with high efficiency
Suitable for  Aluminum material
Machine type CNC Milling Machine
Flutes 3
Coating  Uncoated
Helix angle 45°
Co 10%
HRA 91.8
TRS Min(N/mm²) 3800
Tolerance Within 0/-0.02mm
Processing machine ANCA/





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application



HRC50



YG10X



0.6μm



91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45



HRC55



WF25



0.6μm



92.2

Cast Iron, Alloy Steel, General steel under hardness HRC50



HRC60



GU25UF



0.4μm

92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55



HRC65



GU092



0.2μm

93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized





HRC50 Roughing End Mill for Aluminum

Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
6 50 18 6 3
8 60 24 8 3
10 75 30 10 3
12 75 36 12 3
14 100 45 14 3
16 100 45 16 3
18 100 45 18 3
20 100 45 20 3



Our package



Step1: The end mill has been finished producing and sent to the warehouse



Step2: 1pcs put in a plastic film, 10pcs per group with a rubber band



Step3: Use the air bubble film to encase the plastic pipe



Step4: Put the goods encased with air bubble film in small packing cartons



Step5: Put another air bubble film on the goods and packaging



Step6: Sent by logistics company or express according to customer's need

0.393" 3/8 Large Cobalt Carbide Roughing End Mill 0



                                                                                FAQ



1. Are you a manufacturer or trading company?

We are a professional manufacturer specialized in producing

carbide end mills, carbide drill bits, and carbide reamers.



2. Which CNC grinding machine do you use?

All of our end mills are produced by ANCA & machine.

The stability of tolerance can be assured.



3. How do you usually dispatch the tools?

We usually send goods by express like FedEx, UPS, DHL, TNT, ARAMEX, ETC.

For large quantities, we can send by air or by sea.



4. How about the delivery time?

We can dispatch the stock goods within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

It is around 7-10 business days.



5. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.



6. How do you ensure the stability of quality?

Our company only cooperates with big reliable carbide rod suppliers.
Only sells the carbide tools produced by ourselves.
So don't need to worry about the stability of quality.



7. What kind of grinding wheels do you use?
We are using WINTER brand grinding wheels.
They are imported from Germany.
A High-quality grinding wheel is also important for the quality of carbide tools.
