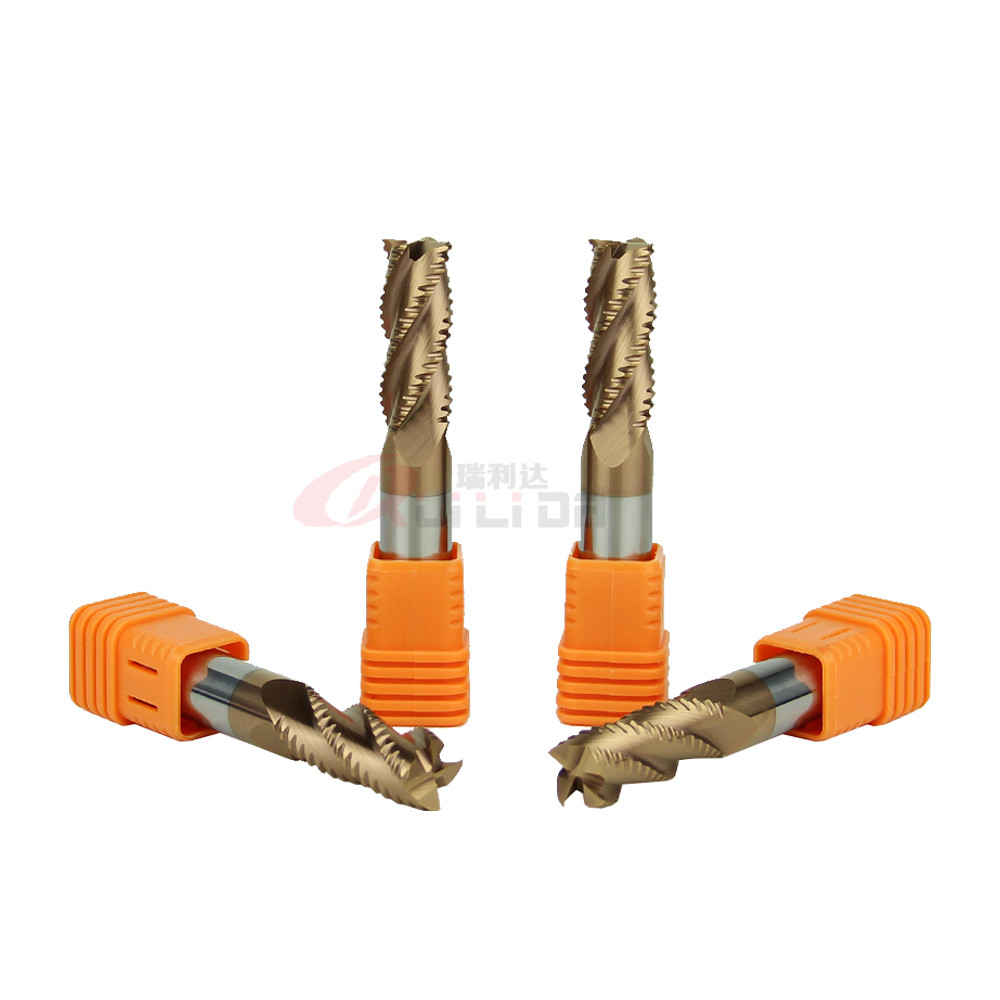

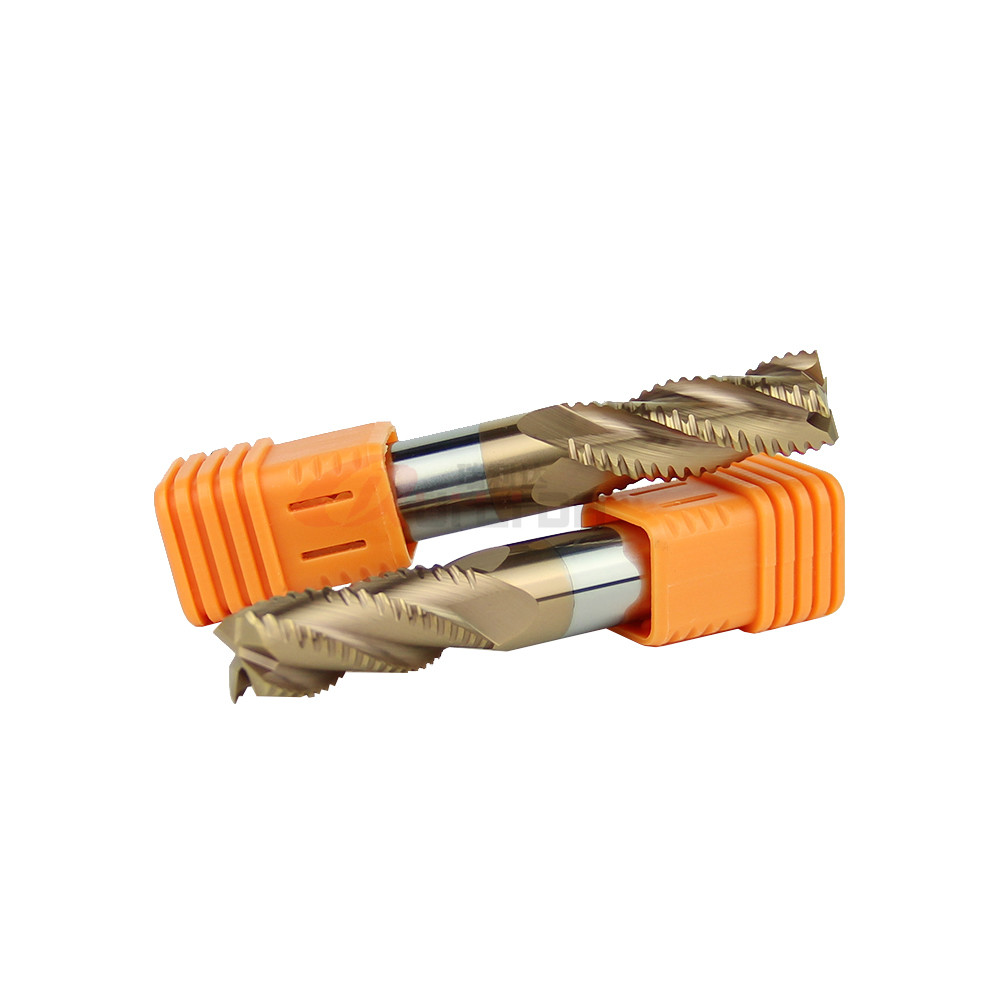

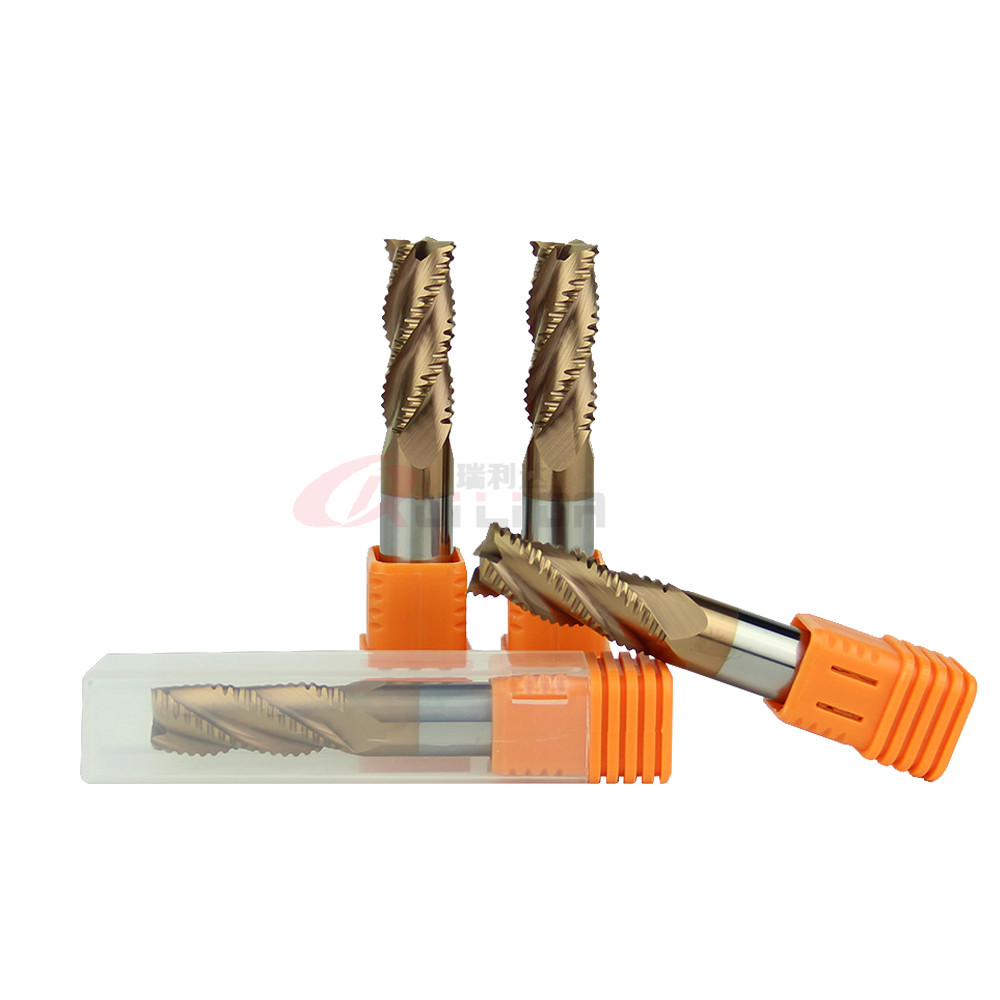

10mm 3/8 Roughing End Mill Carbide HRC55
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HRC55 Roughing End Mill 10mm | Coating | AlTiSiN/Customized |
|---|---|---|---|
| Raw Material | WF25 CB Carbide | Flute Diameter | 10mm |
| Flute Length | 25mm | Overall Length | 75mm |
| High Light | 10mm 3/8 roughing end mill carbide HRC55,3/8 roughing end mill carbide HRC55,HRC55 3/8 roughing end mill carbide |
||
Product Description
HRC55 Carbide Roughing End Mill Cutter For Steel 10mm Roughing Carbide End Mill
The advantages and properties of the aluminum-titanium-silicon-nitrite coating (AlTiSiN coating):
Aluminum-titanium-silicon-nitrite (AlTiSiN) is a combination of aluminum, titanium, silicon,and nitrogen.
This coating is intended for use when machining hard to very hard materials and therefore for high machining temperatures.
The AlTiSiN coating enables hardened, alloyed steels and cast iron to be machined.
Another feature of this coating is that it is suitable for dry and wet machining and therefore the use of cooling lubricant is not absolutely necessary. However, the use of coolant generally increases the service life of the milling cutter.
| Product name |
HRC55 4 Flutes Roughing End Mill for Steel 10mm |
| Feature | Coarse pitch with high efficiency |
| Suitable for | Carbon steel, alloy steel, etc. |
| Machine type | CNC Milling Machine |
| Flutes | 4 |
| Coating | AlTiSiN/customized |
| Helix angle | 35° |
| Co | 12% |
| HRA | 92.2 |
| TRS Min(N/mm²) | 4000 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
|
HRC50 |
YG10X |
0.6μm |
91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
|
HRC55 |
WF25 |
0.6μm |
92.2 |
Cast Iron, Alloy Steel, General steel under hardness HRC50 |
|
HRC60 |
GU25UF |
0.4μm |
92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
|
HRC65 |
GU092 |
0.2μm |
93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized |
|
HRC55 Roughing End Mill for Steel |
||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 6 | 50 | 15 | 6 | 4 |
| 8 | 60 | 20 | 8 | 4 |
| 10 | 75 | 25 | 10 | 4 |
| 12 | 75 | 30 | 12 | 4 |
| 14 | 100 | 45 | 14 | 4 |
| 16 | 100 | 45 | 16 | 4 |
| 18 | 100 | 45 | 18 | 4 |
| 20 | 100 | 45 | 20 | 4 |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer specialized in producing
carbide end mills, carbide drill bits, and carbide reamers.
2. Which CNC grinding machine do you use?
All of our end mills are produced by ANCA & machine.
The stability of tolerance can be assured.
3. How do you usually dispatch the tools?
We usually send goods by express like FedEx, UPS, DHL, TNT, ARAMEX, ETC.
For large quantities, we can send by air or by sea.
4. How about the delivery time?
We can dispatch the stock goods within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
It is around 7-10 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
6. How do you ensure the stability of quality?
Our company only cooperates with big reliable carbide rod suppliers.
Only sells the carbide tools produced by ourselves.
So don't need to worry about the stability of quality.
7. Can you do OEM?
Yes, we can.
