1/2" 12mm Solid Carbide Roughing End Mills For Steel
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HRC55 Roughing End Mill 12mm | Coating | AlTiSiN/Others |
|---|---|---|---|
| Raw Material | WF25 | Flute Diameter | 12mm |
| Flute Length | 30mm | Overall Length | 75mm |
| High Light | 1/2" 12mm solid carbide roughing end mills,roughing end mills for steel,roughing end mill wood |
||
Product Description

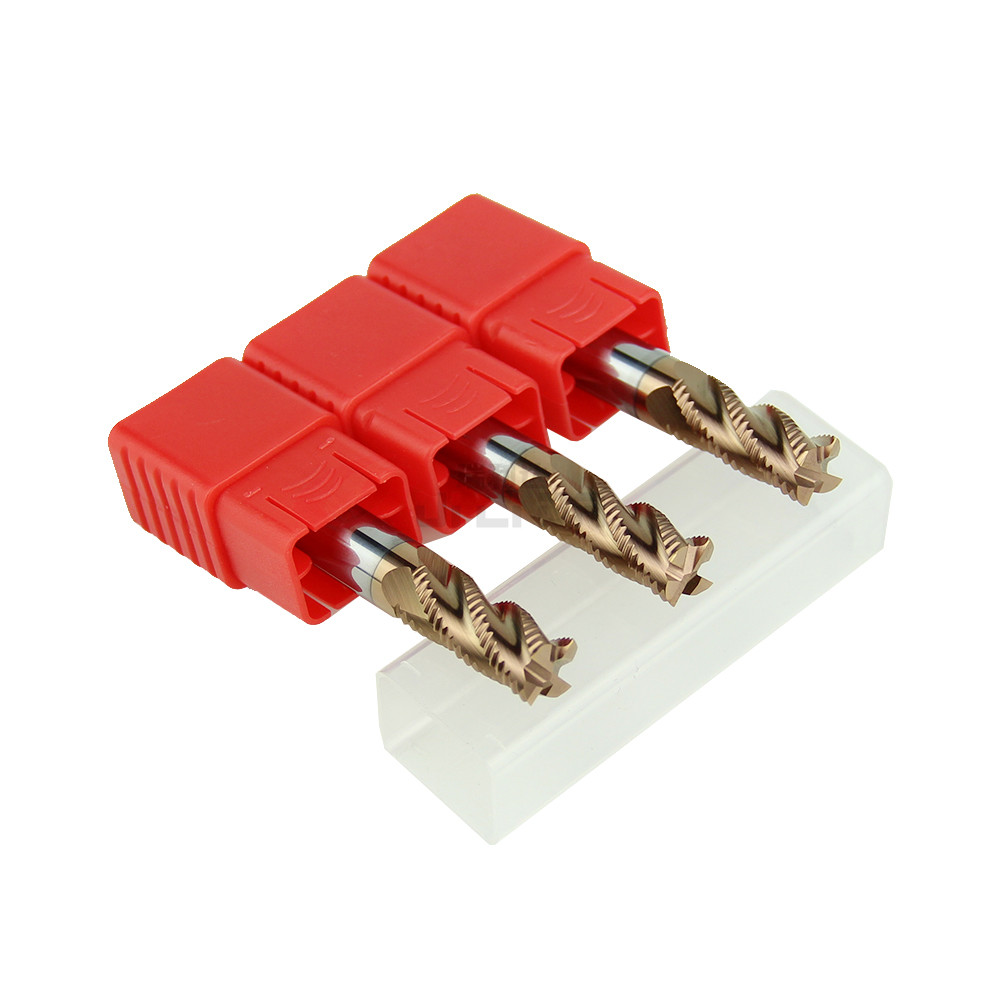

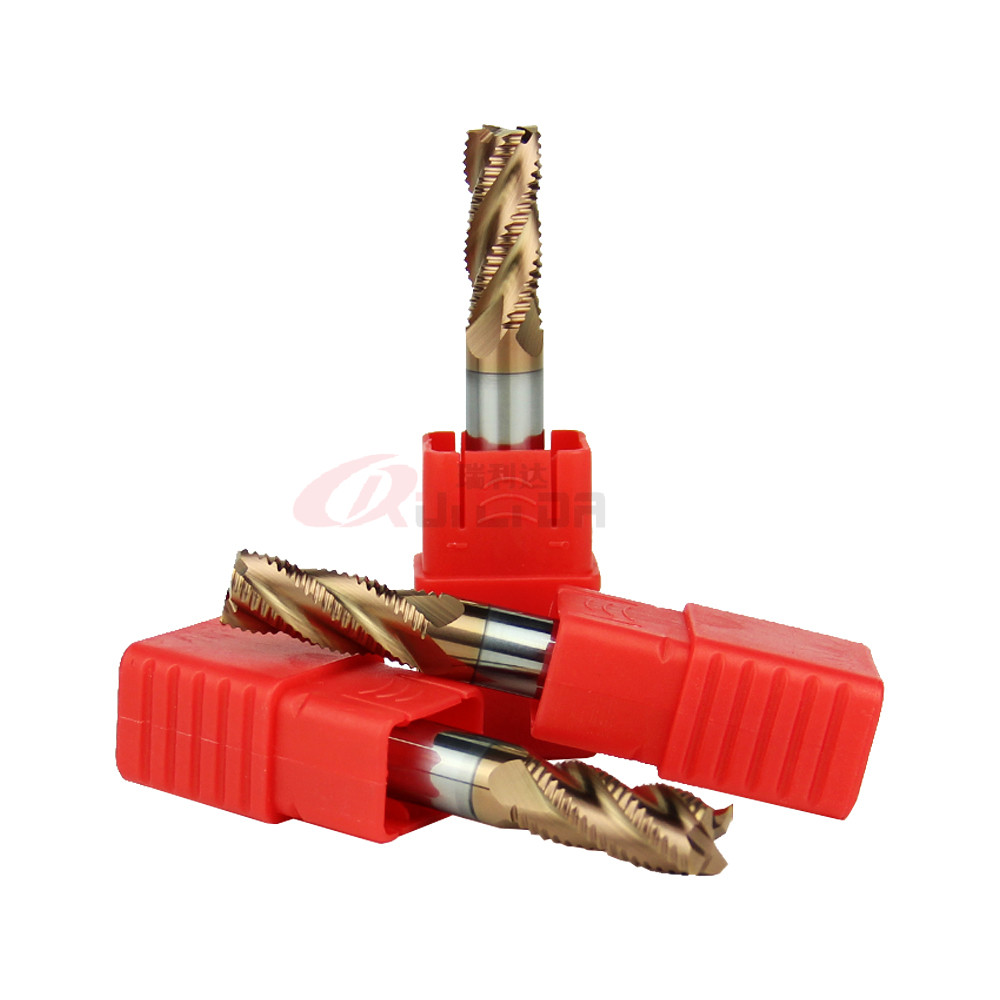

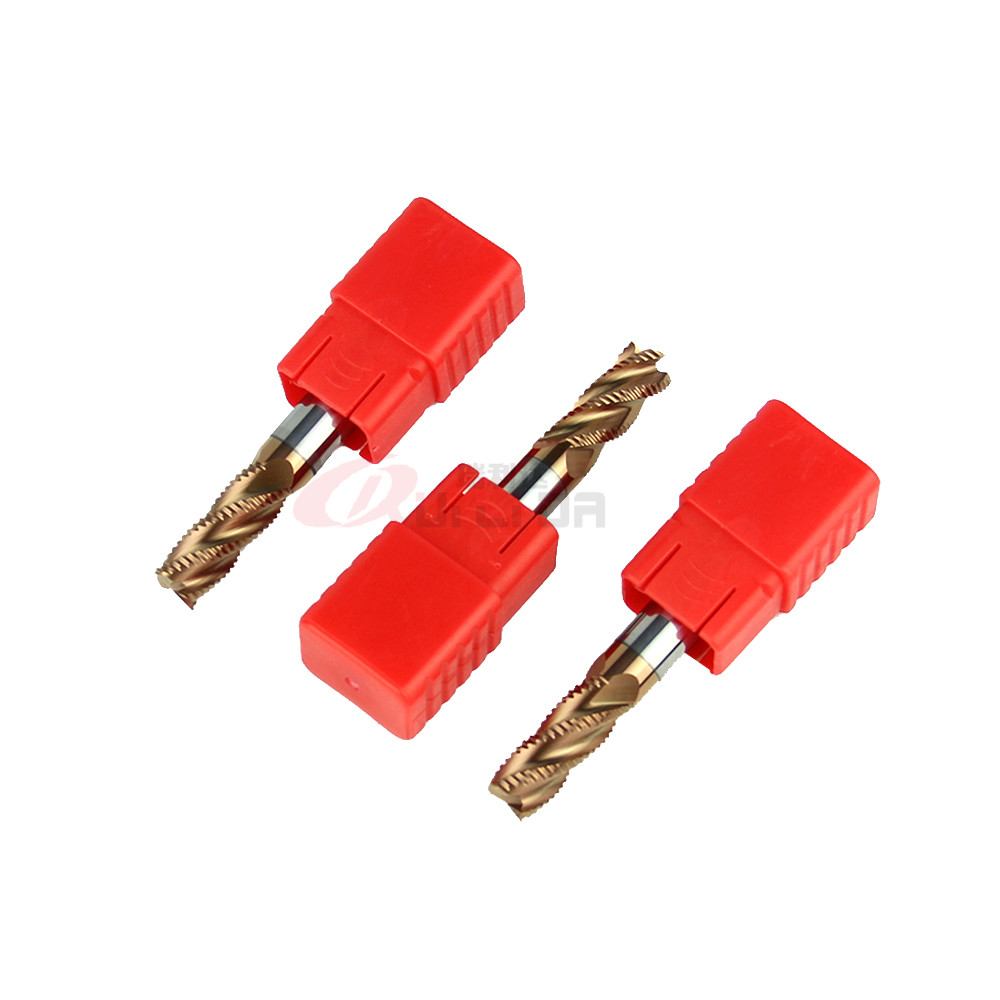

HRC55 Carbide Roughing End Mill Cutter For Steel 12mm Roughing Milling Cutters
Roughing End Mills, also known as ripping cutters or hoggers, are designed to remove large amounts of metal quickly and more efficiently than standard end mills.
Coarse tooth roughing end mills remove large chips for heavy cuts, deep slotting,and rapid stock removal on low to medium carbon steel and alloy steel prior to a finishing application.
Fine tooth roughing end mills remove less material, but the pressure is distributed over many more teeth, for longer tool life and a smoother finish on high-temperature alloys and stainless steel.
| Product name |
HRC55 4 Flutes Roughing End Mill for Steel 12mm |
| Feature | High efficiency for roughing |
| Suitable for | Carbon steel, alloy steel, etc. |
| Machine type | CNC Milling Machine |
| Flutes | 4 |
| Coating | AlTiSiN/customized |
| Helix angle | 35 degree |
| Co | 12% |
| HRA | 92.2 |
| TRS Min(N/mm²) | 4000 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
|
HRC50 |
YG10X |
0.6μm |
91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
|
HRC55 |
WF25 |
0.6μm |
92.2 |
Cast Iron, Alloy Steel, General steel under hardness HRC50 |
|
HRC60 |
GU25UF |
0.4μm |
92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
|
HRC65 |
GU092 |
0.2μm |
93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized |
|
HRC55 Roughing End Mill for Steel |
||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 6 | 50 | 15 | 6 | 4 |
| 8 | 60 | 20 | 8 | 4 |
| 10 | 75 | 25 | 10 | 4 |
| 12 | 75 | 30 | 12 | 4 |
| 14 | 100 | 45 | 14 | 4 |
| 16 | 100 | 45 | 16 | 4 |
| 18 | 100 | 45 | 18 | 4 |
| 20 | 100 | 45 | 20 | 4 |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer specialized in producing
carbide end mills, carbide drill bits, and carbide reamers.
2. Which CNC grinding machine do you use?
All of our end mills are produced by ANCA & machine.
The stability of tolerance can be assured.
3. How do you usually dispatch the tools?
We usually send goods by express like FedEx, UPS, DHL, TNT, ARAMEX, ETC.
For large quantities, we can send by air or by sea.
4. How about the delivery time?
We can dispatch the stock goods within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
It is around 7-10 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
6. How do you ensure the stability of quality?
Our company only cooperates with big reliable carbide rod suppliers.
Only sells the carbide tools produced by ourselves.
So don't need to worry about the stability of quality.
7. Can you do OEM?
Yes, we can.
