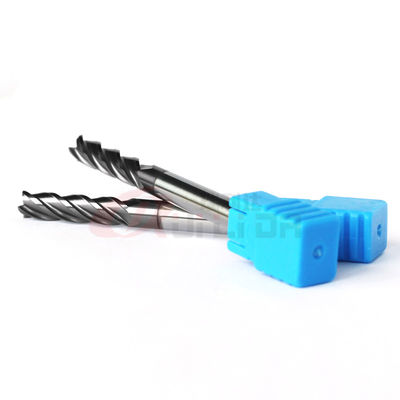

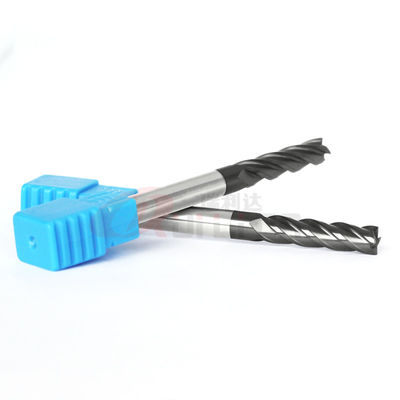

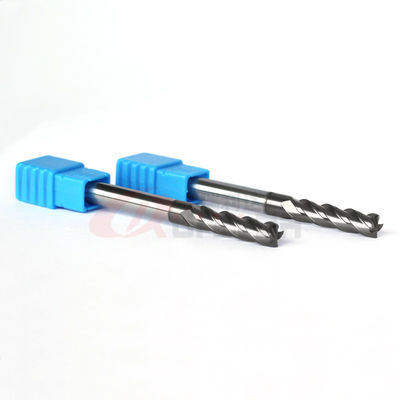

HSS Imperial Milling Cutters 4 Flutes 1/4 Inch Quarter Inch End Mill Cnc 3" Overall Length
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Imperial Milling Cutters 1/4" Square End Mill | Coating | AlTiN |
|---|---|---|---|
| Material | YG10X | Diameter | 1/4" |
| Overall Length | 3" | Flute Length | As Per Request |
| High Light | HSS Imperial Milling Cutters 4 Flutes,1/4 inch Quarter Inch End Mill cnc 3",1/4 inch end mill cnc |
||
Product Description
HRC50 Imperial Milling Cutters 4 Flutes Quarter Inch End Mill 3" Overall Length
The advantages and properties of the aluminum-titanium-nitrite coating (AlTiN coating):
Aluminum-titanium-nitrite (AlTiN) is a combination of aluminum, titanium, and nitrogen.
It is an all-around coating that is suitable for universal use.
With the AlTiN coating, hard materials such as steel or stainless steel can be processed.
Another advantage over uncoated tools or tools with a TiN coating is that the use of cooling lubricant is not absolutely necessary.
However, the use of coolant generally increases the service life of the milling cutter.
| Product name | HRC50 Imperial Milling Cutters 4 Flutes 1/4 Inch Square End Mill |
| Feature | Economic series |
| Suitable for | Pre-hardened steel, stainless steel, iron, cast iron, etc. |
| Machine type | CNC milling machine |
| Flutes | 4 |
| Coating | AlTiN/Customized |
| Helix | 35 degree |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 4000 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized according to your requirement. |
