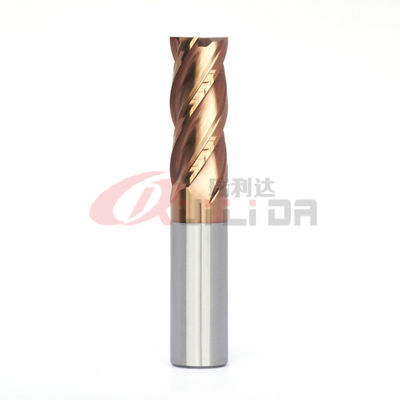

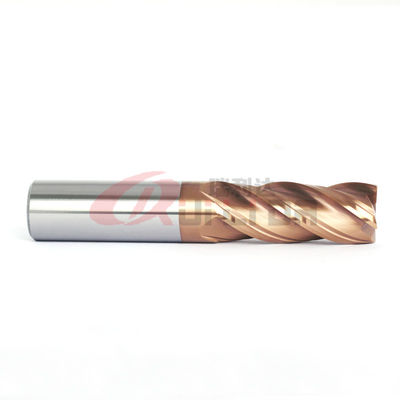

18mm 3/4" Imperial Carbide End Mills 30 Degree 4f Square Nose End Mill HRC55
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Imperial Milling Cutters 3/4" End Mill | Diameter | 3/4" |
|---|---|---|---|
| Overall Length | 4" | Coating | AlTiSiN |
| Flute Length | 1.5"/customized | Carbide Rod | CB Carbide |
| Shank Tolerance | H6 | Flute Tolerance | 0/-0.001" |
| Helix | 35° | Application | Steel, Alloy Steel, Stainless Steel, Brass, Etc. |
| High Light | 18mm 3/4" Imperial milling cutters 30 degree,18mm milling cutter,18mm 3/4" Imperial solid carbide end mill |
||
Product Description
HRC55 Imperial Milling Cutters 4 Flutes 3/4" Inch Carbide Square CNC End Mill
| Product name | HRC50 Imperial Milling Cutters 4 Flutes 3/4" End Mill |
| Feature | Wide application |
| Suitable for | Alloy steel, stainless steel, iron, cast iron, etc. |
| Machine type | CNC milling machine |
| Flutes | 4 |
| Coating | AlTiSiN / customized |
| Helix | 35° |
| Co | 12% |
| HRA | 92.2 |
| TRS Min(N/mm²) | 4000 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 | Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized according to your requirement. |
Clent's Feedback
FAQ
1. Do you prepare inch size carbide end mill in stock?
For inch size end mill, we usually don't prepare in stock.
Lead time is around 7-10 days.
2. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide end mills, drill bits, and reamers.
3. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machine.
The precision of ANCA & can be assured.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
We also can accept the Chinese Yuan.
6. How about the MOQ (minimum quantity) for the customized Imperial Milling Cutters?
The MOQ is from 5-20pcs depending on the exact sizes.
7. Do you have any discounts?
Yes, more quantity will enjoy more discount.
Welcome to send inquiry to us.
