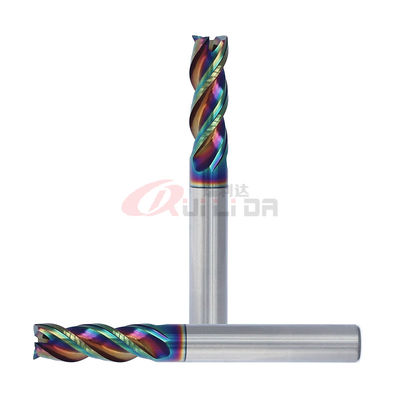

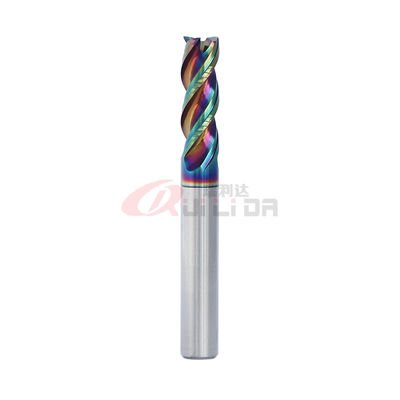

6mm 1/4 Inch DLC Coating 3 Flutes High Performance End Mills For Aluminum

Place of Origin China
Brand Name RLD Tools
Model Number HRC55-6mm 1/4"
Minimum Order Quantity 1pcs for standard size
Price Negotiable for Aluminum End Mill

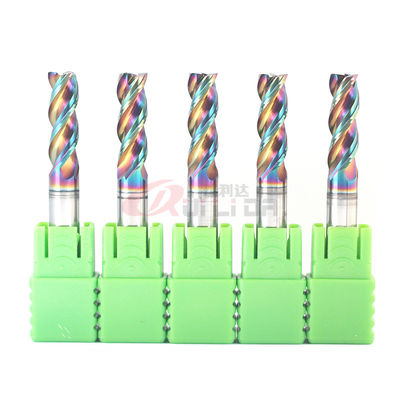

Packaging Details 1pcs piece of end mill in one plastic tube, 10pcs a bundle, then in a carton.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 100000pcs/month
Product Details
Product Name 3 Flute 6mm Aluminum End Mill U Shape With DLC Coating Coating DLC Coating
End Style Square Material Solid Micrograin Carbide
Flute Number 3 Flute Diameter 6mm
Flute Length 18mm Overall Length 50mm
Feature Big Capacity Slot Application High Feed Cutting For Aluminium
High Light

1/4 Inch End Mills For Aluminum

,

DLC Coating End Mills For Aluminum

,

6mm 3 Flute Aluminum End Mill

Leave a Message
Product Description

6mm 1/4 Inch DLC Coating U Shape High Efficiency Aluminium End Mill With 3 Flutes



1. Special Cutting Edge: Special cutting edge can increase the cutting ability.

The lifetime of tools and machines will be longer



2. U shape design: It is suitable for high feed rate slot milling



3. Smooth And Wide Flute: Smooth and wide flute will remove the cuttings more easily



4. DLC Coating: can increase lifetime 2-3 times longer



5. High-quality Raw Material: The raw material is used of high toughness, grain-sized carbon tungsten



6. Polished Surface Treatment: With high polished surface treatment, reduce the friction coefficient could be reduced,

the lathe efficiency could be improved, more production time could be saved



Product name DLC Coating UShape High-efficiency 3 flutes Square Aluminum End Mill
Size  6×18×50×6D×3F
Suitable for  Aluminum, Copper, Aluminum Allo Magnesium Alloy,Zinc Alloy.
Feature  U shape with high efficiency
Flute Number  3
Coating  DLC
Helix angle 40°
Co 12%
HRA 92.8
TRS Min(N/mm²) 4000
Processing machine ANCA/WALTER





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized





DLC Coating UShape High-efficiency 3 flutes Square Aluminum End Mill
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
4 50 12 4 3
6 50 18 6 3
8 60 24 8 3
10 75 30 10 3
12 75 36 12 3

6mm 1/4 Inch DLC Coating 3 Flutes High Performance End Mills For Aluminum 06mm 1/4 Inch DLC Coating 3 Flutes High Performance End Mills For Aluminum 16mm 1/4 Inch DLC Coating 3 Flutes High Performance End Mills For Aluminum 2

Customers Feedback

6mm 1/4 Inch DLC Coating 3 Flutes High Performance End Mills For Aluminum 3



                                       FAQ



1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools.



2. Which shipping method do you usually use?

We usually send goods by express like DHL, UPS, FedEx, etc.



3. How about the delivery time?

We can dispatch within 2 business days after receiving payment for stock items.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.



4. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.



5. Can you produce special carbide tools?

Yes, we can produce customized carbide tools according to your drawings or samples.



6. Do you have any discounts?

Yes, more quantity will enjoy more discount.

Welcome to send inquiry to us.



7. Where is your factory.
Our factory is in Changzhou City, Jiangsu Province, China.
It’s around 1 hour from Shanghai by High-Speed Train.



8. What kind of inspection facilities do you have.

Now we have PG100 and Omega to control the tolerance of cutters.



9. When was your company established?

Our company was established in 2011.
