Solid Micrograin Carbide Aluminium End Mill 3 Flutes U Shaped 4mm 1/8 Inch

Place of Origin China
Brand Name RLD Tools
Model Number HRC55-4mm 1/8"
Minimum Order Quantity 1pcs for standard size
Price Negotiable for Aluminum End Mill
Packaging Details 1pcs piece of end mill in one plastic tube, 10pcs a bundle, then in a carton.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 100000pcs/month
Product Details
Product Name 3 Flute 4mm Aluminum End Mill U Shape With DLC Coating Coating DLC
End Style Square Material Solid Micrograin Carbide
Centercutting Yes Flute Diameter 4mm
Flute Length 12mm Overall Length 50mm
Helix 40 Application High Feed Cutting For Aluminium
High Light

Solid Micrograin Carbide Aluminium End Mill

,

1/8 Inch Aluminium End Mill

,

4mm Aluminum Finishing End Mill

Leave a Message
Product Description

4mm 1/8 Inch DLC Coating U Shape High Efficiency Aluminium End Mill With 3 Flutes



DLC (Diamond-like Carbon) has excellent hardness and lubricity. DLC is a very popular coating

for machining aluminum, graphite, composites, and carbon fiber. In aluminum, this coating is ideal

for high production light finishing applications such as finish profiling and circle milling where holding

size and finish are critical.



Product name DLC Coating UShape High-efficiency 3 flutes Square Aluminum End Mill
Size  4×12×50×4D×3F
Suitable for  Aluminum, Copper, Wood, Acrylic, etc
Feature  Suitable for high feed milling
Flute Number  3
Coating  DLC coating
Helix angle 40°
Co 12%
HRA 92.8
TRS Min(N/mm²) 4000
Processing machine ANCA/





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized





DLC Coating UShape High-efficiency 3 flutes Square Aluminum End Mill
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
4 50 12 4 3
6 50 18 6 3
8 60 24 8 3
10 75 30 10 3
12 75 36 12 3

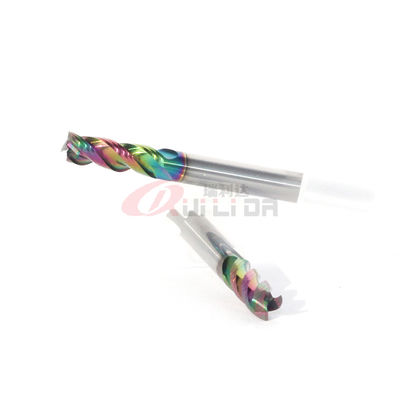

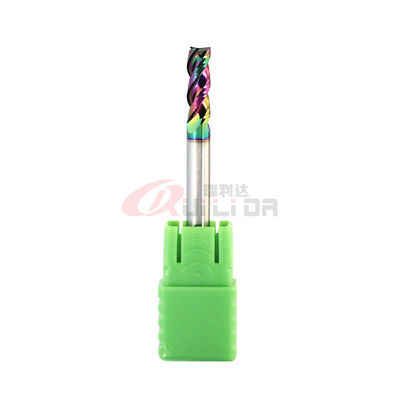

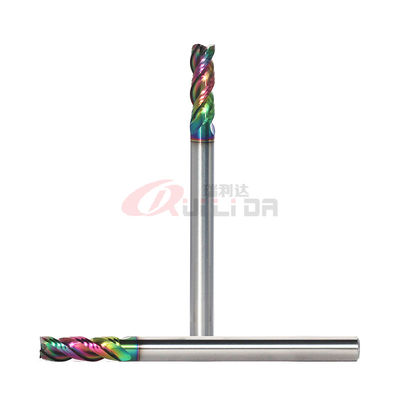

Solid Micrograin Carbide Aluminium End Mill 3 Flutes U Shaped 4mm 1/8 Inch 0Solid Micrograin Carbide Aluminium End Mill 3 Flutes U Shaped 4mm 1/8 Inch 1Solid Micrograin Carbide Aluminium End Mill 3 Flutes U Shaped 4mm 1/8 Inch 2



Customers Feedback

Solid Micrograin Carbide Aluminium End Mill 3 Flutes U Shaped 4mm 1/8 Inch 3



                                       FAQ



1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools.



2. Which shipping method do you usually use?

We usually send goods by express like DHL, UPS, FedEx, etc.



3. How about the delivery time?

We can dispatch within 2 business days after receiving payment for stock items.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.



4. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.



5. Can you produce special carbide tools?

Yes, we can produce customized carbide tools according to your drawings or samples.



6. Can you do OEM?
Yes, we can



7. Do you have any discounts?

Yes, more quantity will enjoy more discount.

Welcome to send inquiry to us.



8. Where is your factory.
Our factory is in Changzhou City, Jiangsu Province, China.
It’s around 1 hour from Shanghai by High-Speed Train.



9. How many grinding machines do you have now?
Our company has 13 sets of CNC grinding machines.



10. What kind of inspection facilities do you have.

Now we have PG100 and Omega to control the tolerance of cutters.



11. When was your company established?

Our company was established in 2011.
