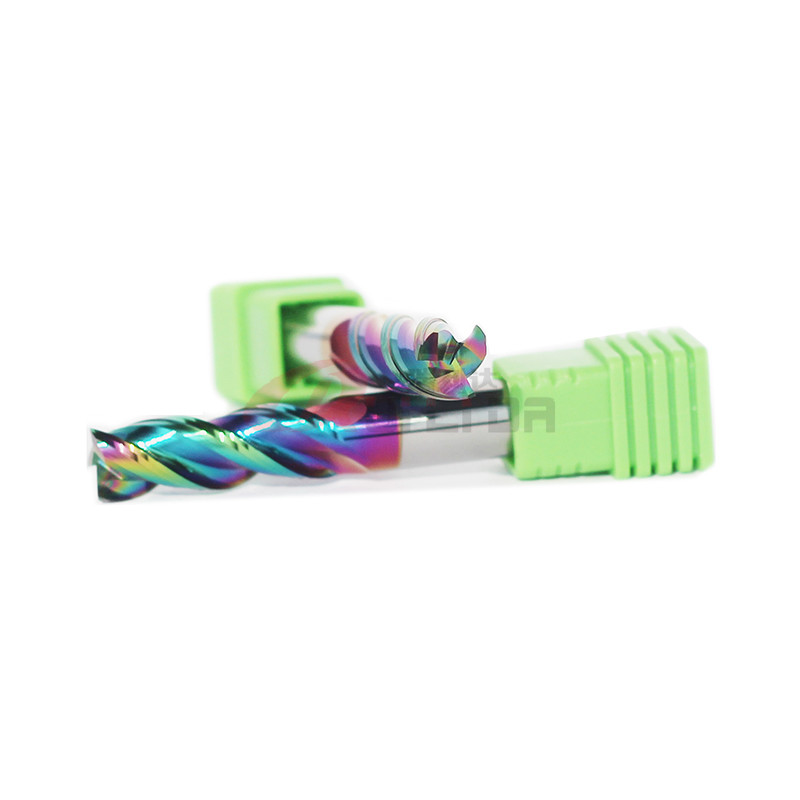

DLC Coating Square Aluminium End Mill U Shaped High Efficiency 3 Flutes 8mm

Place of Origin China
Brand Name RLD Tools
Model Number HRC55-8mm
Minimum Order Quantity 1pcs for standard size
Price Negotiable for Aluminum End Mill
Packaging Details 1pcs piece of end mill in one plastic tube, 10pcs a bundle, then in a carton.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 100000pcs/month
Product Details
Product Name 3 Flute 4mm Aluminum End Mill U Shape With DLC Coating Coating DLC
End Style Square Flute Number 3
Flute Diameter 8mm Flute Length 24mm
Overall Length 60mm Feature High-efficiency
Application High Feed Cutting For Aluminium
High Light

8mm Square Aluminium End Mill

,

U Shaped Aluminium End Mill

,

DLC Coating Aluminum Roughing End Mill

Leave a Message
Product Description

8mm DLC Coating U Shape High-efficiency 3 Flutes Aluminium Square Endmill

RLD End Mill Catalog in English.pdf



DLC Diamond-like Carbon Coating can provide up to 100% increase in tool life, the polished surface

of the flutes decrease cutting forces, and are excellent in finishing operations. Can be used for dry cutting.



1. Optimum for Aluminium Cutting

2. High precise edge tolerance

3. Minimize fracturing

4. Excellent surface hardening treatment design, effectively prevent blade break when processing

use of the most advanced carbide rods, processing performance, and wear resistance can be improved



Product name DLC Coating UShape High-efficiency 3 flutes Square Aluminum End Mill
Size  8×24×60×8D×3F
Suitable for  Aluminum, Copper, brass, etc
Feature  U shape with high efficiency
Flute Number  3
Coating  DLC
Helix angle 40°
Co 12%
HRA 92.8
TRS Min(N/mm²) 4000
Processing machine ANCA/WALTER





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized





DLC Coating UShape High-efficiency 3 flutes Square Aluminum End Mill
Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
4 50 12 4 3
6 50 18 6 3
8 60 24 8 3
10 75 30 10 3
12 75 36 12 3

DLC Coating Square Aluminium End Mill U Shaped High Efficiency 3 Flutes 8mm 0DLC Coating Square Aluminium End Mill U Shaped High Efficiency 3 Flutes 8mm 1DLC Coating Square Aluminium End Mill U Shaped High Efficiency 3 Flutes 8mm 2

Customers Feedback

DLC Coating Square Aluminium End Mill U Shaped High Efficiency 3 Flutes 8mm 3



                                       FAQ



1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools.



2. Which shipping method do you usually use?

We usually send goods by express like DHL, UPS, FedEx, etc.



3. How about the delivery time?

We can dispatch within 2 business days after receiving payment for stock items.

For the out-of-stock items, it depends on the quantity.

Usually is around 5-7 business days.



4. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.



5. Can you produce special carbide tools?

Yes, we can produce customized carbide tools according to your drawings or samples.



6. Do you have any discounts?

Yes, more quantity will enjoy more discount.

Welcome to send inquiry to us.



7. Where is your factory.
Our factory is in Changzhou City, Jiangsu Province, China.
It’s around 1 hour from Shanghai by High-Speed Train.



8. What kind of inspection facilities do you have.

Now we have PG100 and Omega to control the tolerance of cutters.
