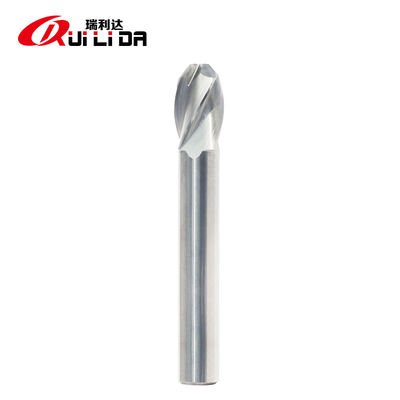

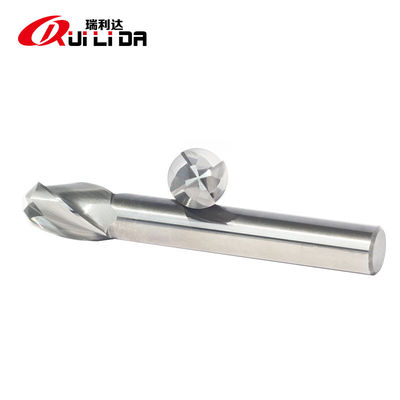

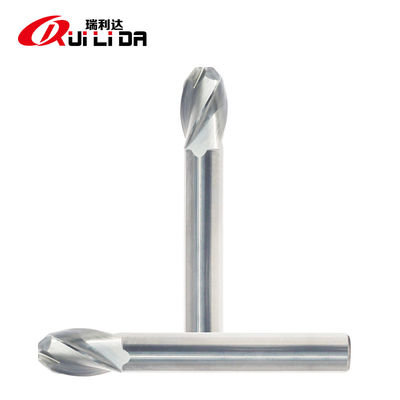

4 Flutes Tungsten Solid Carbide 45 Degree Chamfer Cutter For Aluminium CNC Milling

Place of Origin China
Brand Name RLD Tools
Model Number HRC50-65
Minimum Order Quantity 1
Price Negotiable
Packaging Details One piece end mill in a plastic tube, ten pieces a bundle, then in carton.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 1000pcs/month
Product Details
Name 4 Flutes Chamfer Cutter For Aluminium Type Custom End Mill
Coating Customzied Material Carbide
Diameter Customzied Overall Length Customized
Suitable For Steel, Aluminium, Titanium, Etc. Brand RLD/OEM
High Light

Tungsten 45 Degree Chamfer Cutter

,

Solid Carbide 45 Degree Chamfer Cutter

,

Aluminium CNC Milling Custom End Mill

Leave a Message
Product Description

4 Flutes Custom Tungsten Solid Carbide 45 Degree Chamfer Cutter For Aluminium CNC Milling Cutter

For chamfer cutter, we usually produce according to the client's requirement
Can send us the drawing and tell us it will be used for cutting what material.
Then we will choose the suitable carbide raw material, coating, and geometry for you.

Lead time for the customized carbide tool is around 7-10 business days.



Product name RLD custom chamfer cutter
Feature Durable tool life
Suitable for   Steel, stainless steel, iron, cast iron
Machine type CNC milling machine
Flutes Customized
Coating  Customized
Helix Customized




                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62



                                                            Coating   Introduction


Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized according to your requirement.



Our package



Step1: The milling cutter has been finished producing and sent to the warehouse



Step2: One cutter put in a plastic pipe, 10pieces per group bind with a rubber band



Step3: Use the air bubble paper to encase the plastic pipe



Step4: Put the goods encased with air bubble paper in small packing cartons



Step5: Put another air bubble paper on the goods and packaging



Step6: Sent by logistics company or express according to customer's need


4 Flutes Tungsten Solid Carbide 45 Degree Chamfer Cutter For Aluminium CNC Milling 04 Flutes Tungsten Solid Carbide 45 Degree Chamfer Cutter For Aluminium CNC Milling 1

                                                     FAQ
1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools which established in 2011.


2. Which CNC grinding machine do you use?

All of our carbide tools are produced by ANCA & machine.


3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
For large amount, we can send by air or by sea.

We also can send products to your forwarder in China.


4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.

5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.


 6. How do you ensure the stability of quality?
Our company seldom change rod suppliers.
And we only sell the tools produced by ourselves.
So for the same grade, our quality is always the same.


7. Can you produce special carbide tools?

Yes, we can produce special carbide tools according to your drawings or samples.
