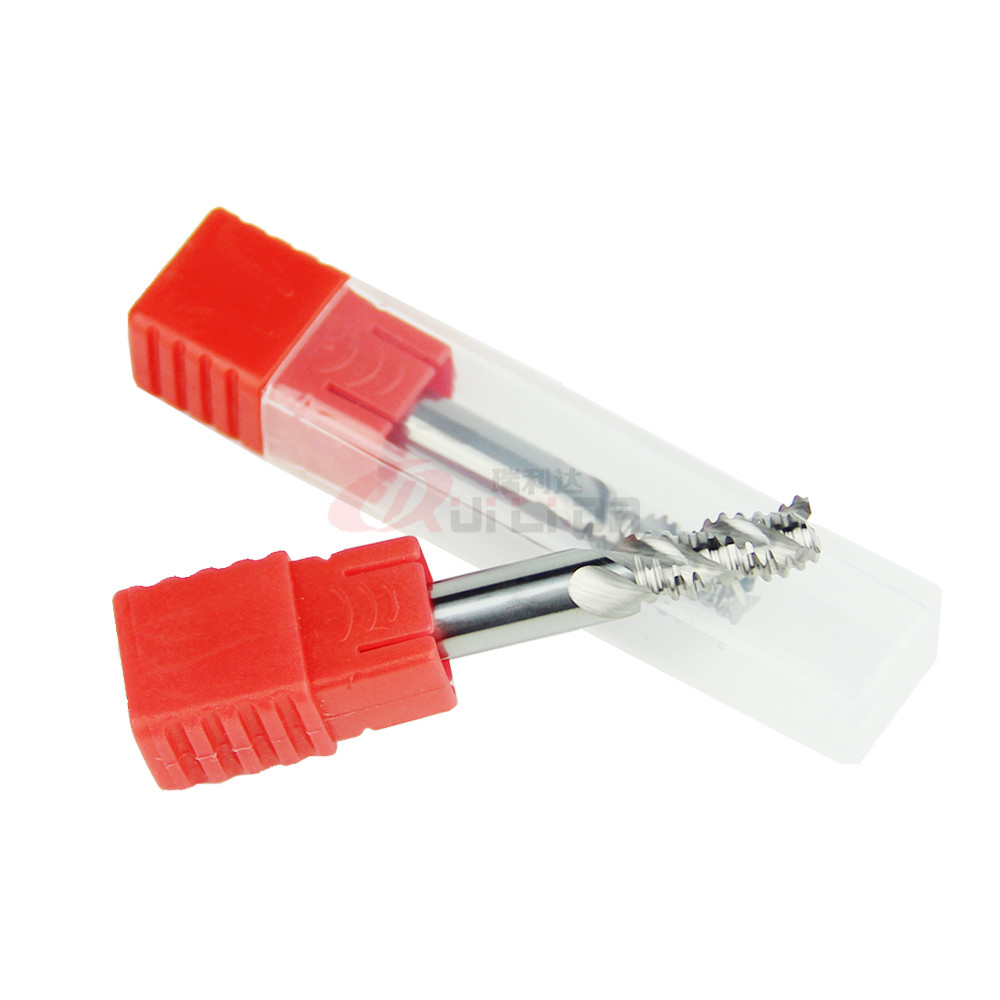

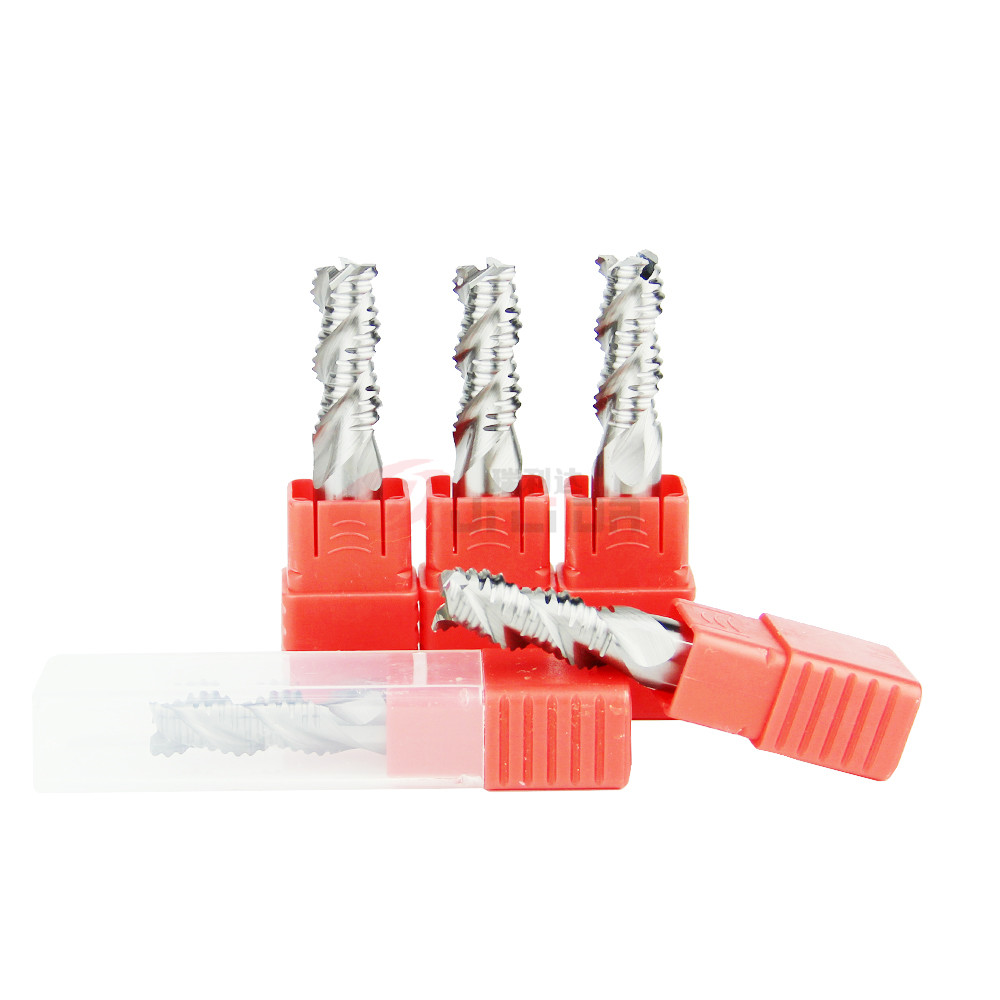

1 1/2 3 Flute Roughing End Mill For Aluminum Carbide HRC50

Place of Origin China
Brand Name RLD Tools
Model Number HRC50
Minimum Order Quantity 1
Price Negotiable
Packaging Details One piece end mill in a plastic tube, ten pieces a bundle, then in carton.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 20000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name HRC50 Roughing End Mills For Aluminum Coating Uncoated/DLC Coating
Raw Material ZY10EF Suitable For Aluminum, Brass, Etc
Feature High Efficiency Rough Milling Shank Torlerance H6
Tolerance Within 0/-0.02mm Origin China
High Light

3 Flute Roughing End Mill HRC50

,

1/2 Roughing End Mill For Aluminum

,

6MM Roughing End Mill Aluminum

Leave a Message
Product Description

1 1/2 3 Flute Roughing End Mill For Aluminum Carbide HRC50



Roughing End Mills, also known as ripping cutters or hoggers, are designed to remove large

amounts of metal quickly and more efficiently than standard end mills.
Coarse tooth roughing end mills remove large chips for heavy cuts, deep slotting, and

rapid stock removal on low to medium carbon steel and alloy steel prior to a finishing application.



Product name

 HRC50 3 Flutes Roughing End Mills for Aluminum

Feature Coarse pitch high-efficiency rough milling
Suitable for  Aluminum material
Machine type CNC Milling Machine
Flutes 3/4
Coating  Uncoated / Customized coating
Helix angle 45°
Co 10%
HRA 91.8
TRS Min(N/mm²) 3800
Tolerance Within 0/-0.02mm
Processing machine ANCA/





                                             Carbide Raw Material Introduction



End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62





                                                            Coating   Introduction



Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized





HRC50 Roughing End Mill for Aluminum

Flute Dia(mm) Overall Length(mm) Cutting Length(mm) Shank Dia(mm) Flutes
6 50 18 6 3
8 60 24 8 3
10 75 30 10 3
12 75 36 12 3
14 100 45 14 3
16 100 45 16 3
18 100 45 18 3
20 100 45 20 3

1 1/2 3 Flute Roughing End Mill For Aluminum Carbide HRC50 0



                                                                                FAQ



1. Are you a manufacturer or trading company?

We are a professional manufacturer of the solid carbide end mill.



2. Which CNC grinding machine do you use?

All of our end mills are produced by ANCA & machine.



3. How do you usually dispatch the tools?

We usually send goods by express like FedEx, UPS, DHL, TNT, ARAMEX, ETC.

We also can send the parcels to your shipping agent in China.



4. How about the delivery time?

We can dispatch the stock goods within 2 business days after receiving payment.

For the out-of-stock items, it depends on the quantity.

It is around 7-10 business days.



5. Which payment methods do you accept?

We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.

CNY (Chinese Yuan) is also acceptable.



6. How do you ensure the stability of quality?
Our company seldom change rod suppliers.
And we only sell the tools produced by ourselves.
So for the same grade, our quality is always the same.



7. What kind of grinding wheels do you use?
We are using WINTER brand grinding wheels.
They are imported from Germany.
A High-quality grinding wheel is also important for the quality of carbide tools.



8. Do you have any discounts?

Yes, more quantity will enjoy more discount.

Welcome to send inquiry to us.
