HRC50 1/2 4 Flute Carbide Roughing End Mills For Steel Or Aluminum
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HRC50 Roughing End Mills For Aluminum & Steel | Coating | Uncoated/Customized Coating |
|---|---|---|---|
| Raw Material | Also Can Be Customized As Per Your Material | Suitable For | Aluminum, Brass, Steel, Iron, Etc |
| Feature | High Efficiency Rough Milling | Shank Torlerance | H6 |
| Tolerance | 0/-0.02mm | Origin | Jiangsu, China |
| High Light | 4 Flute Carbide Roughing End Mills,HRC50 1/2 Carbide Roughing End Mills,Aluminum Roughing Carbide End Mill |
||
Product Description

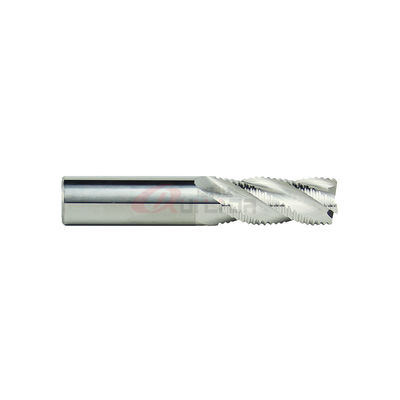

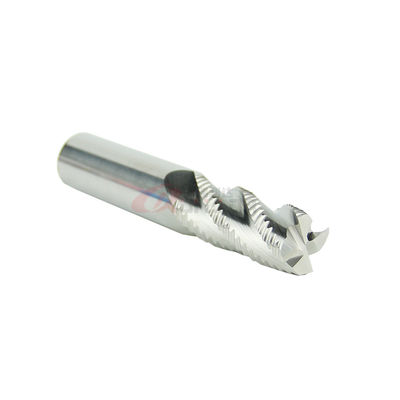

HRC50 1/2 4 Flute Carbide Roughing End Mills For Steel or Aluminum
Roughing End Mills, also known as ripping cutters or hoggers, are designed to remove large
amounts of metal quickly and more efficiently than standard end mills.
| Product name |
HRC50 4 Flutes Roughing End Mills for Aluminum or Steel |
| Feature | Coarse pitch high-efficiency rough milling |
| Suitable for | Aluminum, steel, iron, etc |
| Machine type | CNC Milling Machine |
| Flutes | 3/4 |
| Coating | Uncoated / Customized coating |
| Helix angle | 45° or 30° |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 3800 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized |
Our package
Step1: The end mill has been finished producing and sent to the warehouse
Step2: 1pcs put in a plastic film, 10pcs per group with a rubber band
Step3: Use the air bubble film to encase the plastic pipe
Step4: Put the goods encased with air bubble film in small packing cartons
Step5: Put another air bubble film on the goods and packaging
Step6: Sent by logistics company or express according to customer's need
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of various kinds of carbide tools.
2. Which CNC grinding machine do you use?
All of our end mills are produced by ANCA & grinding machines.
3. How do you usually dispatch the tools?
We usually send goods by express like FedEx, UPS, DHL, TNT, ARAMEX, ETC.
We also can send the parcels to your shipping agent in China.
4. How about the delivery time?
We can dispatch the stock goods within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
It is around 7-10 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
CNY (Chinese Yuan) is also acceptable.
6. What kind of grinding wheels do you use?
We are using WINTER brand grinding wheels.
They are imported from Germany.
A High-quality grinding wheel is also important for the quality of carbide tools.
7. Do you have any discounts?
Yes, more quantity will enjoy more discount.
Welcome to send inquiry to us.
