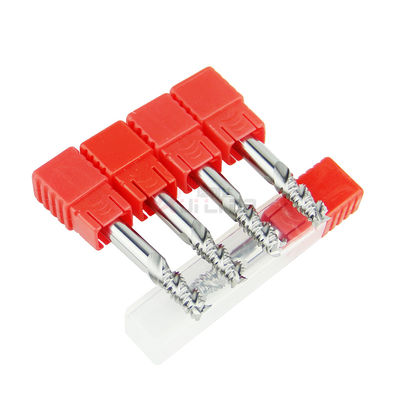

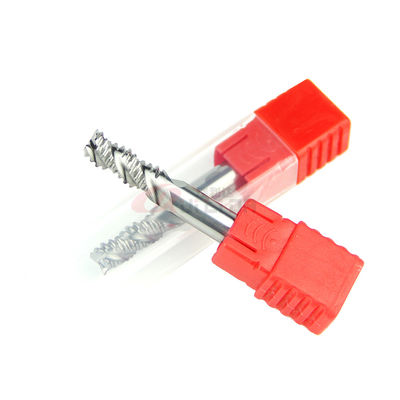

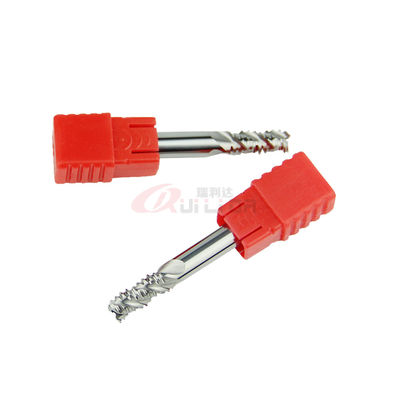

HRC50 Inch Size Carbide 3 Flute Roughing End Mill For Aluminum Or Soft Metal
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | HRC50 3 Flutes Roughing End Mills | Coating | Uncoated/DLC Coating |
|---|---|---|---|
| Cutting Direction | Right Hand | Suitable For | Aluminum, Brass, Soft Metal, Etc |
| Feature | High Efficiency Rough Milling | Shank Torlerance | H6 |
| Tolerance | Within 0/-0.02mm | Origin | China |
| High Light | HRC50 3 Flute Roughing End Mill,Carbide Roughing End Mill For Aluminum,DLC Coating Roughing Milling Cutters |
||
Product Description
HRC50 Inch Size Carbide 3 Flute Roughing End Mill For Aluminum or Soft Metal
We also can produce the customized sizes roughing end mill according to your requirements.
| Product name |
HRC50 3 Flutes Roughing End Mills for Aluminum |
| Feature | Coarse pitch high-efficiency rough milling |
| Suitable for | Aluminum or soft metal |
| Machine type | CNC Milling Machine |
| Flutes | 3 |
| Coating | Uncoated / Customized coating |
| Helix angle | 45° |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 3800 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized |
|
HRC50 Roughing End Mill for Aluminum |
||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 6 | 50 | 18 | 6 | 3 |
| 8 | 60 | 24 | 8 | 3 |
| 10 | 75 | 30 | 10 | 3 |
| 12 | 75 | 36 | 12 | 3 |
| 14 | 100 | 45 | 14 | 3 |
| 16 | 100 | 45 | 16 | 3 |
| 18 | 100 | 45 | 18 | 3 |
| 20 | 100 | 45 | 20 | 3 |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide end mills.
2. Which CNC grinding machine do you use?
All of our end mills are produced by ANCA & grinding machines.
ANCA is from Australia, is from Germany.
3. How do you usually dispatch the tools?
We usually send goods by express like FedEx, UPS, DHL, TNT, ARAMEX, ETC.
We also can send the goods to your forwarder in China.
4. How about the delivery time?
We can dispatch the stock goods within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
It is around 7-10 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
6. How do you ensure the stability of quality?
Our company seldom change rod suppliers.
And we only sell the tools produced by ourselves.
So for the same grade, our quality is always the same.
7. What kind of grinding wheels do you use?
We are using WINTER brand grinding wheels.
They are imported from Germany.
A High-quality grinding wheel is also important for the quality of carbide tools.
8. Do you have any discounts?
Yes, more quantity will enjoy more discount.
Welcome to send inquiry to us.
9. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make customized stickers.
