TCT Router Bit Straight Milling Cutter TCT Straight Bit For MDF Wood Router Bits

Place of Origin China
Brand Name RLD Tools
Model Number HRC50-65
Minimum Order Quantity 1
Price Negotiable
Packaging Details One piece end mill in a plastic tube, ten pieces a bundle, then in carton.
Delivery Time 5-8 work days
Payment Terms T/T/PayPal/Credit Card
Supply Ability 1000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Wood Router Bit Type Custom End Mill
Coating Customzied Material TCT
Diameter Customzied Overall Length Customized
Suitable For Wood/MDF Flute Number 3
Flute Type Straight Flute
High Light

TCT Router Bit Straight Milling Cutter


TCT Straight Milling Cutter


MDF Wood Router Bits

Leave a Message
Product Description

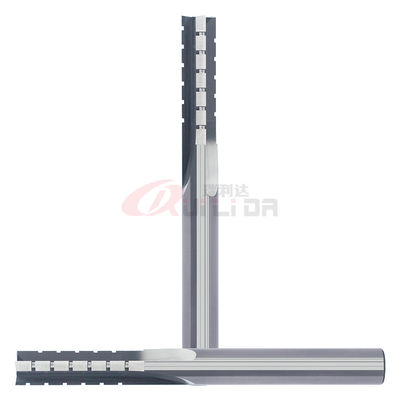

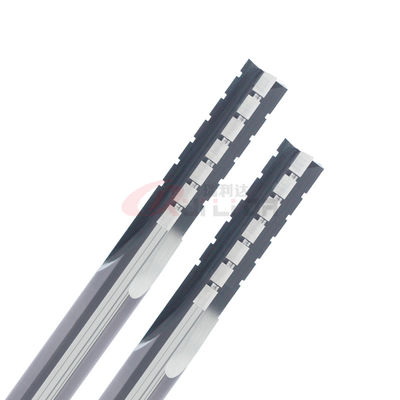

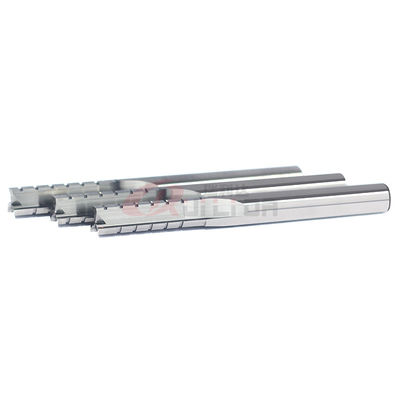

TCT Router Bit Straight Milling Cutter TCT Straight Bit for MDF wood router bits

For wood router bit, we usually produce according to the client's requirement
Can send us the drawing and tell us it will be used for cutting what material.
Then we will choose the suitable carbide raw material, coating, and geometry for you.

Lead time for the customized carbide tool is around 7-10 business days.


Product name RLD straight flute wood router bit
Feature Durable tool life
Suitable for   MDF, wood
Machine type CNC milling machine
Flutes Customized
Coating  Customized
Helix Customized

                                             Carbide Raw Material Introduction

End mill grade Carbide rod Grain size HRA Application
HRC50 YG10X 0.6μm 91.8

Aluminum, iron, low alloy steel,

general steel under hardness HRC45

HRC55 WF25 0.6μm 92.2 Cast Iron, Alloy Steel, General steel under hardness HRC50
HRC60 GU25UF 0.4μm 92.5 Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
HRC65 GU092 0.2μm 93.5 Alloy Steel, Hardened Steel under hardness HRC62

                                                            Coating   Introduction

Coating name Color Thickness Hardness Friction The Max ℃
AlTiN Black 1.5-3 3300 0.4 900
AlTiSiN Copper 1.5-3 3500 0.35 1000
TiAlN Dark Violet 1-3 3000 0.4 800
Blue Nano Blue 2-4 3200 0.45 1000
AlCrN Dark grey 1.5-3 3500 0.3 1250
DLC Black 1-3 1800 0.1 350
Diamond Black 2-12 10000 0.02-0.1 650
Coating also can be customized according to your requirement.


Our package


Step1: The milling cutter has been finished producing and sent to the warehouse


Step2: One cutter put in a plastic pipe, 10pieces per group bind with a rubber band


Step3: Use the air bubble paper to encase the plastic pipe


Step4: Put the goods encased with air bubble paper in small packing cartons


Step5: Put another air bubble paper on the goods and packaging


Step6: Sent by logistics company or express according to customer's need

TCT Router Bit Straight Milling Cutter TCT Straight Bit For MDF Wood Router Bits 0TCT Router Bit Straight Milling Cutter TCT Straight Bit For MDF Wood Router Bits 1
1. Are you a manufacturer or trading company?

We are a professional manufacturer of carbide tools which established in 2011.

2. Which CNC grinding machine do you use?

All of our carbide tools are produced by ANCA & grinding machines.

3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
For large amount, we can send by air or by sea.

We also can send products to your forwarder in China.

4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.


6. What kind of grinding wheels do you use?
We are using WINTER brand grinding wheels.
They are imported from Germany.
The High-quality grinding wheel is also important for the quality of carbide tools.


7. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make customized stickers.
