Sus T Slot Custom Profile End Mill Grooving Shank Cutter
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | T Slot Milling Cutter | Type | Gear Milling Cutter |
|---|---|---|---|
| Coating | AlTiN AlTiSiN Or Customized | Material | Mirco Grain Carbide |
| Number Of Flute | 6 | Overall Length | Customized |
| Suitable For | Steel, Titanium Alloy, Stainless Steel,etc | Brand | RLD/OEM |
| High Light | t slot custom profile end mill,sus custom profile end mill,grooving shank custom end mill |
||
Product Description

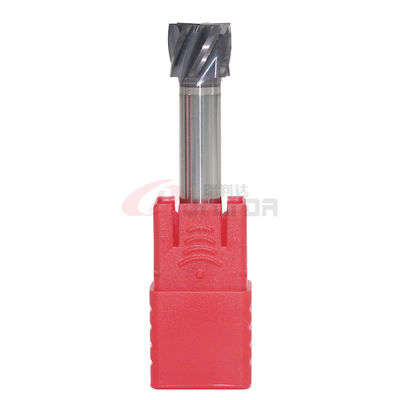

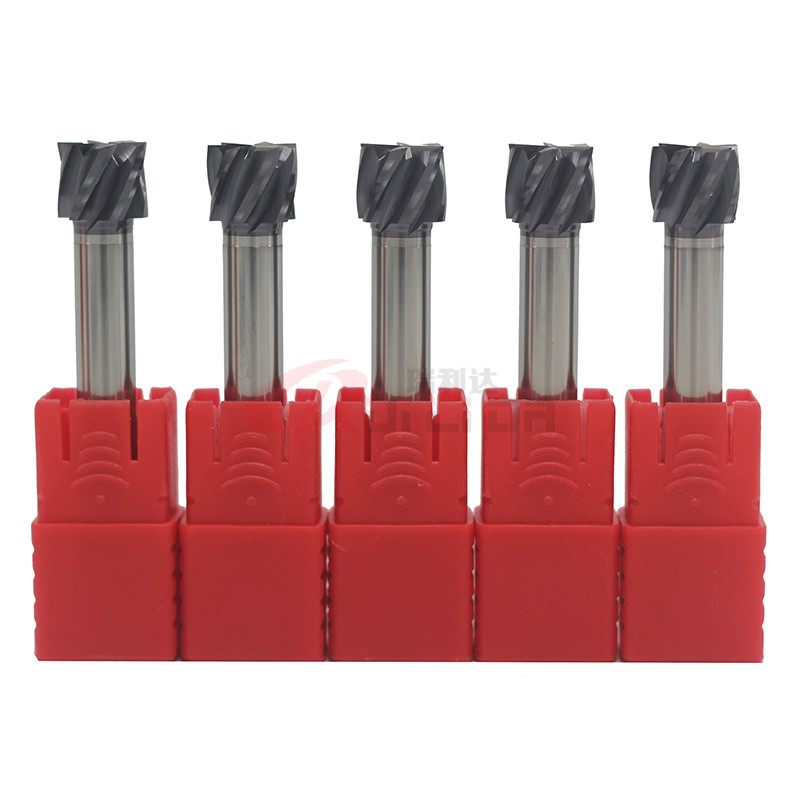

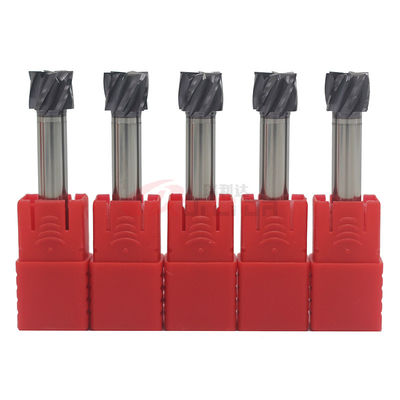

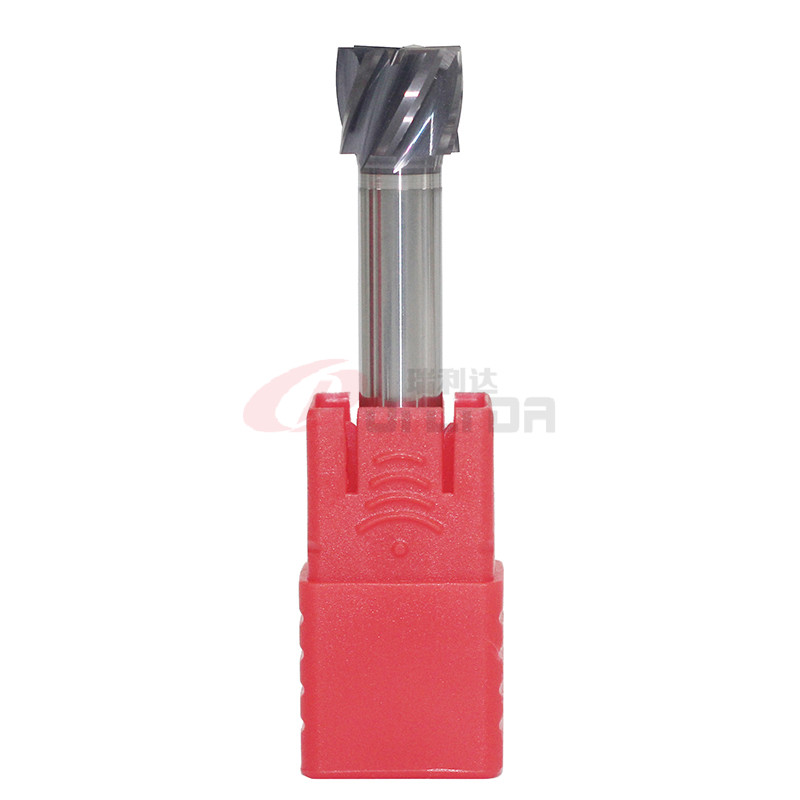

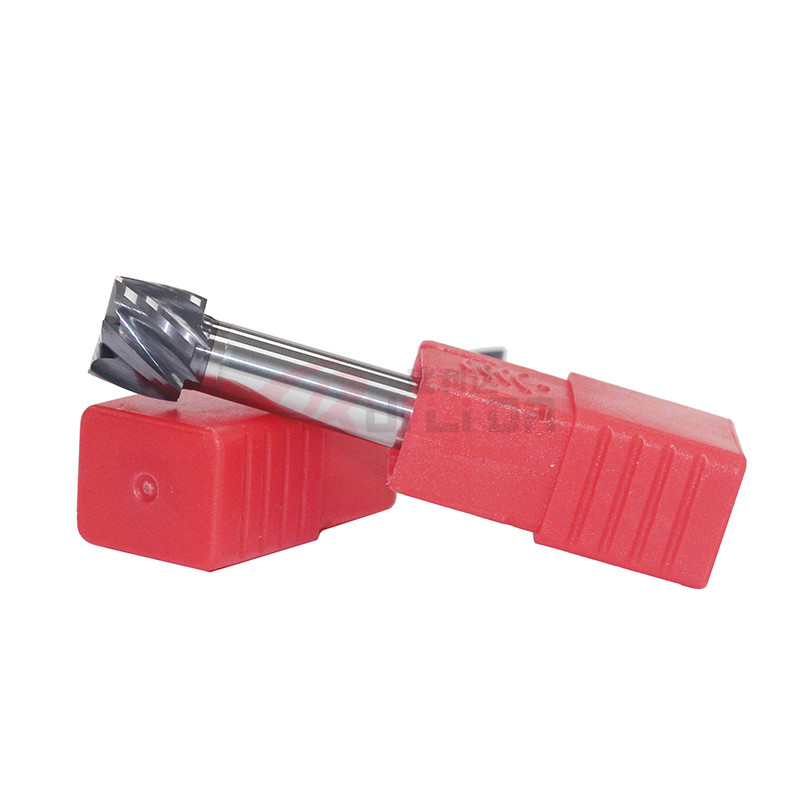

T Slot Milling Cutter Carbide Alloy Tungsten Steel Slotting CNC Endmill Grooving Shank Cutter
T-Slot End Mills can easily cut accurate keyways & T-slots in the tables and beds of machine tools and similar applications.
A vertical slot must be milled first. So that the neck and shank can enter the cut. T-Slot Cutters have a positive radial and
axial rake, with a straight tooth design or staggered side cutting teeth for better chip clearance.
| Product name | RLD custom end mill 4 Flutes T slot cutter |
| Feature | Durable tool life |
| Suitable for | Steel, stainless steel, iron, cast iron |
| Machine type | CNC milling machine |
| Flutes | 6 |
| Coating | Customized |
| Helix | Customized |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized according to your requirement. |
Our package
Step1: The milling cutter has been finished producing and sent to the warehouse
Step2: One cutter put in a plastic pipe, 10pieces per group bind with a rubber band
Step3: Use the air bubble paper to encase the plastic pipe
Step4: Put the goods encased with air bubble paper in small packing cartons
Step5: Put another air bubble paper on the goods and packaging
Step6: Sent by logistics company or express according to customer's need
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools which was established in 2011.
2. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machine.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
6. How do you ensure the stability of quality?
Our company seldom change rod suppliers.
And we only sell the tools produced by ourselves.
So for the same grade, our quality is always the same.
7. Can you produce special carbide tools?
Yes, we can produce special carbide tools according to your drawings or samples.
