1mm 1/25" 2mm 1/8" 4 Flute End Mill Aluminum Alloy Steel TiSiN Coating
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product | HRC55 4 Flutes 1mm Flat Endmill | Flute Diameter | 1mm |
|---|---|---|---|
| Flute Length | 3mm | Overall Length | 50mm |
| Shank Dia | 4mm | Material | WF25 |
| Coating | TiSiN | Suitable For | SC45, Mold Steel, Alloy Steel, General Steel, Etc. |
| High Light | 1mm 1/25" 4 flute end mill aluminum,2mm 4 flute end mill HRC55 RLD,4 flute end mill for aluminum |
||
Product Description

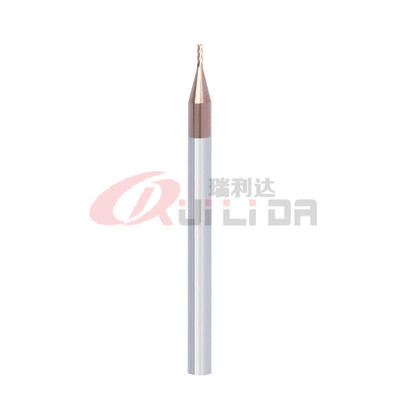

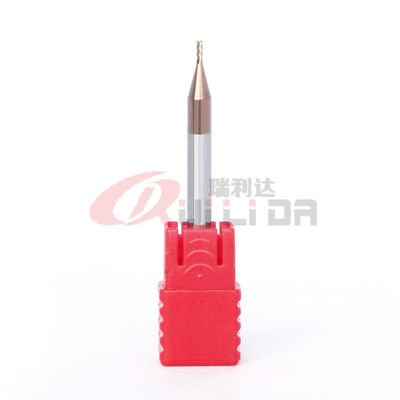

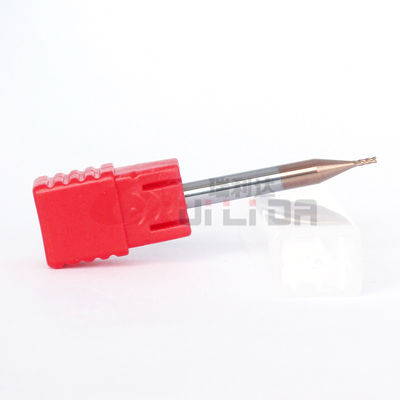

HRC55 4 Flutes 1mm Tungsten Solid Carbide Cutter End Mill with TiSiN Coating for Alloy Steel
| Product name | RLD HRC55 1mm Diameter Flat End Mill |
| Size | 1*3*50*4D*4F |
| Suitable for | SC45, mold steel, alloy steel under HRC50 |
| Machine type | CNC milling machine |
| Flutes | 4 |
| Coating | TiSiN |
| Helix angle | 35 degree |
| Co | 12% |
| HRA | 92.2 |
| TRS Min(N/mm²) | 3800 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 |
Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized according to the requirement |
|
RLD HRC55 4F Square End Mill Standard Size |
||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 1 | 50 | 3 | 4 | 4 |
| 1.5 | 50 | 4.5 | 4 | 4 |
| 2 | 50 | 6 | 4 | 4 |
| 2.5 | 50 | 7.5 | 4 | 4 |
| 3 | 50 | 9 | 3 | 4 |
| 3 | 50 | 9 | 4 | 4 |
| 3.5 | 50 | 10.5 | 4 | 4 |
| 4 | 50 | 12 | 4 | 4 |
| 4 | 75 | 16 | 4 | 4 |
| 4 | 100 | 20 | 4 | 4 |
| 5 | 50 | 15 | 5 | 4 |
| 5 | 50 | 15 | 6 | 4 |
| 6 | 50 | 18 | 6 | 4 |
| 6 | 75 | 24 | 6 | 4 |
| 6 | 100 | 30 | 6 | 4 |
| 8 | 60 | 24 | 8 | 4 |
| 8 | 75 | 32 | 8 | 4 |
| 8 | 100 | 40 | 8 | 4 |
| 10 | 75 | 30 | 10 | 4 |
| 10 | 100 | 45 | 10 | 4 |
| 12 | 75 | 36 | 12 | 4 |
| 12 | 100 | 45 | 12 | 4 |
| 14 | 100 | 45 | 14 | 4 |
| 16 | 100 | 45 | 16 | 4 |
| 18 | 100 | 45 | 18 | 4 |
| 20 | 100 | 45 | 20 | 4 |
| 6 | 150 | 35 | 6 | 4 |
| 8 | 150 | 50 | 8 | 4 |
| 10 | 150 | 60 | 10 | 4 |
| 12 | 150 | 70 | 12 | 4 |
| 14 | 150 | 65 | 14 | 4 |
| 16 | 150 | 65 | 16 | 4 |
| 18 | 150 | 65 | 18 | 4 |
| 20 | 150 | 70 | 20 | 4 |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools was established in 2011.
2. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machines.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ARAMEX, ETC.
For large quantities, we can send by air or by sea.
We also can send the goods to the shipping agent in China.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
CNY (Chinese Yuan) is also acceptable.
6. Can you produce special carbide tools?
Yes, we can produce customized carbide end mills according to your drawings or samples.
7. Can you do OEM?
Yes, we can engrave your logo on the tool's shank for free.
We also can make customized labels.
8. What kind of inspection facilities do you have.
We have PG1000, Omega inspection facilities to check the tolerance of each tool.
